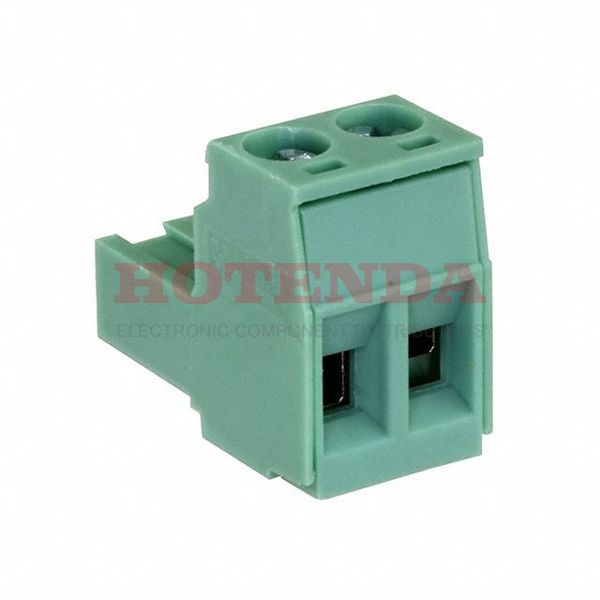

5441171

5441171

5441171

Phoenix Contact

5441171 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

5441171 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 8 Weeks
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
PackagingBulk
Published 2014
Series BCP
Feature Retention Latches (Non-Wire Side)
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Plug, Female Sockets
Number of Positions 2
Color Green
HTS Code8536.69.40.40
Pitch 0.197 5.00mm
Insulation Height 0.591 15.00mm
Reach Compliance Code not_compliant
Termination Style Screw
Voltage 300V
Number of Levels 1
Current 15A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 12 AWG
Contact Mating Finish Tin
Voltage - UL 300V
Wire Gauge or Range - AWG 12-30 AWG
Voltage - IEC 630V
Torque - Screw 0.4-0.5 Nm (3.5-4.4 Lb-In)
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.2-2.5mm2
Wire Strip Length 7mm
Current - IEC 12A
Screw Size M3
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
In-Stock:3385 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$2.09000$2.09
10$2.00300$20.03
50$1.94940$97.47
100$1.82510$182.51
250$1.68312$420.78
500$1.55892$779.46

5441171 Product Details

5441171 Overview


It's mounted Free Hanging (In-Line).Packaging the product involves using a Bulk case.A product of the BCP Series, it belongs to the range of products of that series.Its Retention Latches (Non-Wire Side) feature makes it more powerful in a number of ways.The part is mounted by Free Hanging.As with other Plug, Female Sockets products, this part also offers a wide range of benefits.

5441171 Features


BCP series

5441171 Applications


There are a lot of Phoenix Contact 5441171 Terminal Blocks applications.

  • Measuring & Control Technology
  • LED municipal outdoor and street lighting
  • Communication
  • Blowers
  • Instrumentation
  • Datacom
  • Telecommunications
  • Refrigeration control
  • Control panels
  • All Electrical Machinery
