Name: 5448640
Brand: Phoenix Contact
SKU: 5448640
Price: 5.43000 USD
Availability: InStock

new-10%

5448640

Manufacturer part number:5448640

Manufacturer:Phoenix Contact

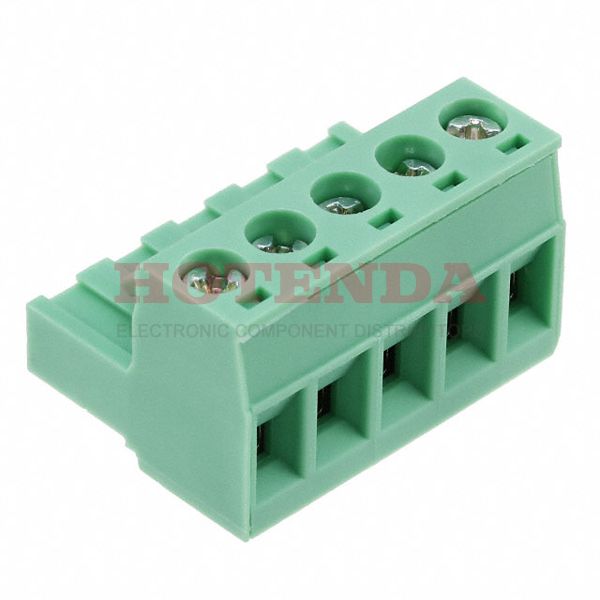

Description:Bulk 0.200 5.08mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets BCP Polyamide (PA), Nylon Tin

Case Package:SOT-23

Datasheet:5448640 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Packaging	Bulk
Published	2013
Series	BCP
Feature	Retention Latches (Non-Wire Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Type	Plug, Female Sockets
Number of Positions	5
Color	Green
Pitch	0.200 5.08mm
Insulation Height	0.591 15.00mm
Reach Compliance Code	not_compliant
Termination Style	Screw
Voltage	300V
Number of Levels	1
Current	15A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Voltage - UL	300V
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.4-0.5 Nm (3.5-4.4 Lb-In)
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Current - IEC	12A
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

5448640 Product Details

5448640 Overview

Free Hanging (In-Line) indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the BCP Series.In many ways, Retention Latches (Non-Wire Side) makes it more powerful.By Free Hanging, the part is mounted.It is a part that shares many benefits with other products from the Plug, Female Sockets line.
