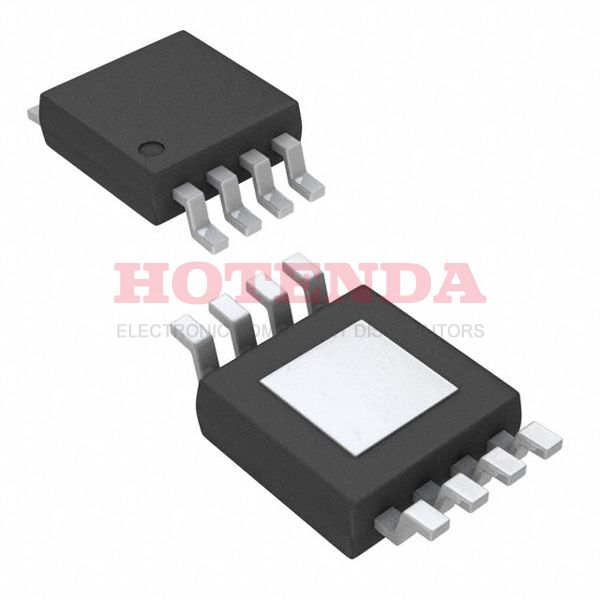

RT8292BHZSP Overview
As a result of the use of the Cut Tape (CT) package, the performance of this voltage regulator is optimized. Space-saving 8-SOIC (0.154, 3.90mm Width) Exposed Pad packages are available for this harley voltage regulator. There are 1 outputs configured on this voltage regulator 12v. DC DC switching regulators like this one generate Adjustable outputs on their output pins to handle the power management. A Surface Mount mounting is required for this switching regulator. As long as its operating temperature is -40°C~85°C TA, dc to dc voltage regulator should perform well. A DC-DC switching regulator of this type operates at a switching frequency of 1.2MHz. The voltage regulator can be operated with a voltage as low as 4.5V as an input voltage. The adjusting voltage regulator's output voltage (Min/Fixed) is 0.8V. DC DC switching regulator's maximum design flexibility comes from its output current of 2A. 23V volts is DC DC switching regulator's maximum input voltage. Voltage can be produced at 15V volts by voltage regulator. In order to operate voltage regulator, 8 pins are required. As a general rule, this voltage regulator 12v should keep its output voltage at least at 800mV. There is a maximum output voltage of 15V from this voltage regulator 12v.
RT8292BHZSP Features
1 outputs
8 pins
RT8292BHZSP Applications
There are a lot of Richtek USA Inc. RT8292BHZSP Voltage Regulators applications.
- Medical monitoring systems
- Precision electronic equipment
- Planers
- Various precision measuring instruments
- Sensitive electronic devices
- Overvoltage protection circuits in TV sets
- USB circuits
- Household control circuits
- Balance equipment
- Communication system
