LM358WPT Overview

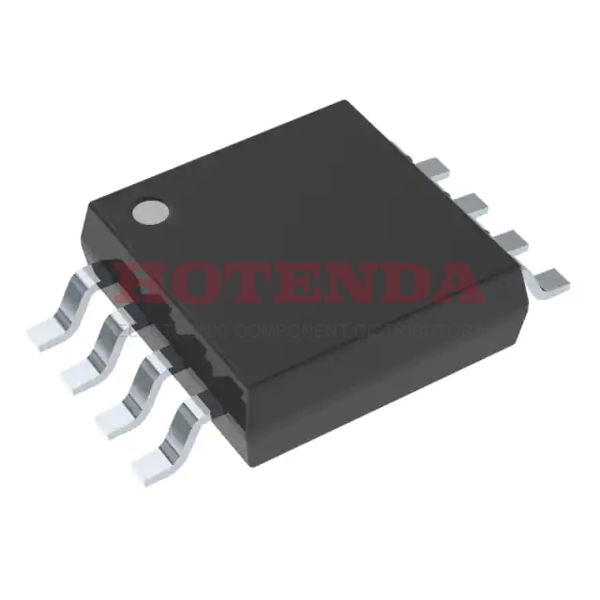

There is a 8-TSSOP (0.173, 4.40mm Width) case in which the instrumentation amplifier is packaged. Buffer amps of this type are called General Purpose-types. A Tape & Reel (TR) case is used to deliver the buffer op amp. The number of terminations is approaching the 8 mark. The total number of pins on linear amplifier is 8. The linear amplifier should be run at 5V at all times, so please keep that in mind when using it. In order to be more specific, this instrumentation amplifier is one of the types of Operational Amplifier devices. 8 pins are included on the operational amplifiers. As far as the input offset voltage is concerned, linear amplifier rates at 2mV. For this electronic part, it is recommended that you mount it with type Surface Mount. It is important to note that this linear amplifier works well at a temperature of 0°C~70°C when it comes to operating temperatureIt is possible to operate this buffer amplifier from a supply current of 700μA . 100dB should be the voltage gain. A linear amplifier like this has 2 circuits on it. The operating supply voltage of the buffer op amp is rated at 16V.
LM358WPT Features
8 Pins
supply voltage of 5V
100dB voltage gain
LM358WPT Applications
There are a lot of ROHM Semiconductor
LM358WPT Instrumentational OP Amps applications.
- Subtraction operation circuits
- single/dual op amp sum and difference circuits
- Integrator circuits
- Differentiator circuits
- Logarithmic operation circuits
- Exponential operation circuits
- Multiplication circuits
- Division circuits
- Precision measurement
- Power control
