AD585SQ Overview

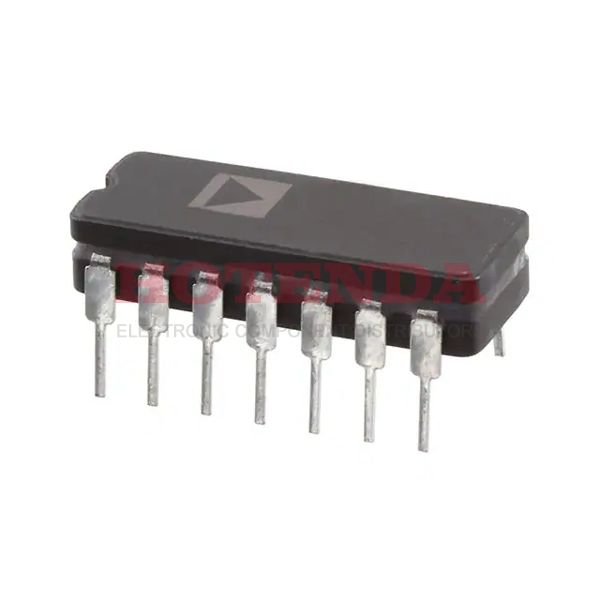

There is a 14-CDIP (0.300, 7.62mm) case package that contains the instrumentation amplifiers. The instrumentation amplifier in this picture is of the Sample and Hold-type. Upon delivery, op amp ic is packaged in a Tube case. In total, there are 14 pins on this op amp ic. This linear amplifier should be powered by an 15V battery. 14 pins are located on the operational amplifiers. The input offset voltage is 2mV. This electrical part should be mounted using type Through Hole. In terms of operating temperatures, this buffer amplifier works very well at a temperature of around -55°C~125°C . The buffer amplifier is capable of operating from a supply current of 10mA . This op amp contains 1 circuits. On the linear amplifier, there are 2 amplifiers.
AD585SQ Features
14 Pins
supply voltage of 15V
AD585SQ Applications
There are a lot of Analog Devices Inc.
AD585SQ Instrumentational OP Amps applications.
- Exponential operation circuits
- Multiplication circuits
- Division circuits
- Precision measurement
- Power control
- Information processing
- Weak signal detection
- Signal amplification
- Signal filtering
- Signal operation
