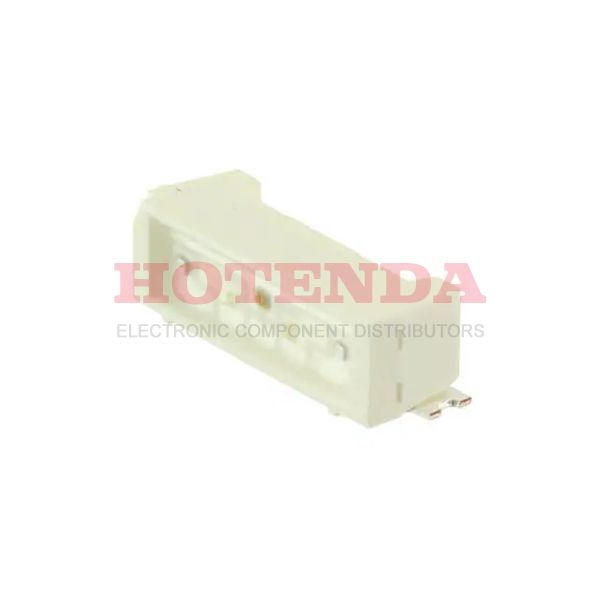

Name: MSL0101RGBU1
Brand: ROHM Semiconductor
SKU: MSL0101RGBU1
Availability: InStock

new-10%

MSL0101RGBU1

Manufacturer part number:MSL0101RGBU1

Manufacturer:ROHM Semiconductor

Description:LED RGB DIFFUSED 2709 SMD R/A

Case Package:SOT-23

Datasheet:MSL0101RGBU1 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	17 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount, Right Angle
Package / Case	7-SMD, Flat Lead
Number of Pins	7
Shape	RECTANGULAR
Packaging	Tape & Reel (TR)
Published	2012
Series	MSL0101
Size / Dimension	6.90mm Lx2.20mm W
Part Status	Not For New Designs
Moisture Sensitivity Level (MSL)	4 (72 Hours)
Number of Terminations	7
Color	Red, Green, Blue (RGB)
Additional Feature	SIDE VIEW
HTS Code	8541.40.20.00
Number of Functions	1
Reach Compliance Code	unknown
Operating Temperature (Max)	85°C
Operating Temperature (Min)	-40°C
Configuration	Independent
Voltage - Forward (Vf) (Typ)	2.1V Red 3.3V Green 3.2V Blue
Optoelectronic Device Type	TRIPLE COLOR LED
Current - Test	20mA Red 20mA Green 20mA Blue
Lens Style	Rectangle with Flat Top
Lens Size	5.40mmx1.60mm
Luminous Intensity	400 mcd
Millicandela Rating	700mcd Red, 1200mcd Green, 400mcd Blue
Lens Transparency	Diffused
Lens Color	White
Forward Current-Max	0.04A
Wavelength - Dominant	624nm Red 527nm Green 470nm Blue
Number of LEDs	3
Height	2.15mm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

About MSL0101RGBU1

The MSL0101RGBU1 from ROHM Semiconductor is a high-performance microcontroller designed for a wide range of embedded applications. This component features LED RGB DIFFUSED 2709 SMD R/A.

Key Features

Advanced AVR architecture for efficient processing
Wide operating temperature range: -40°C to 85°C
Low power consumption for energy-efficient applications
Comprehensive peripheral set including SPI, UART, and USART interfaces

Applications

This microcontroller is ideal for various applications including:

Industrial control systems
Consumer electronics
Automotive systems
IoT devices
Medical equipment

Technical Support

Hotenda provides comprehensive technical support for the MSL0101RGBU1, including datasheets, application notes, and design resources. Our team of engineers is available to assist with your design challenges.
