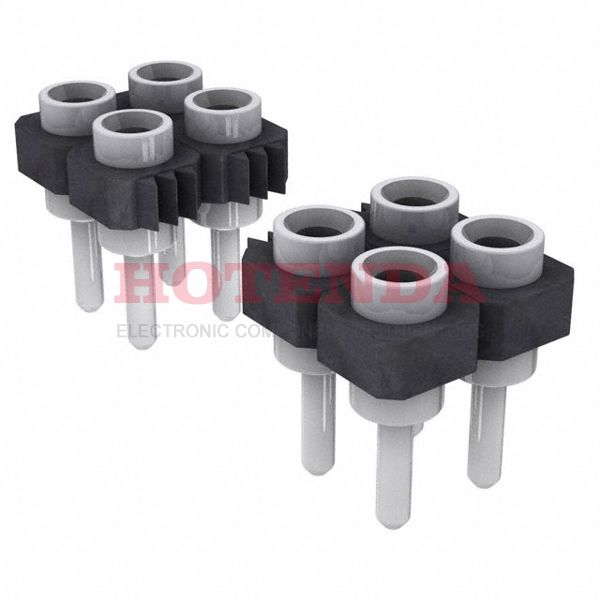

Name: SDL-115-TT-10
Brand: Samtec Inc.
SKU: SDL-115-TT-10
Availability: InStock

new-10%

SDL-115-TT-10

Manufacturer part number:SDL-115-TT-10

Manufacturer:Samtec Inc.

Description:2 Rows Receptacle Solder Beryllium Copper Through Hole Tube Tin Liquid Crystal Polymer (LCP) 30 Positions Female Socket

Case Package:SOT-23

Datasheet:SDL-115-TT-10 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Beryllium Copper
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Circular
Insulation Material	Liquid Crystal Polymer (LCP)
Housing Material	Plastic
Operating Temperature	-55°C~105°C
Packaging	Tube
Published	2008
Series	SDL
Pbfree Code	yes
Part Status	Discontinued
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle
Number of Positions	30
Number of Rows	2
Additional Feature	LOW PROFILE
HTS Code	8536.69.40.40
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Insulation Height	0.122 3.10mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Row Spacing - Mating	0.100 (2.54mm)
Contact Length - Post	0.108 2.75mm
Housing Color	Black
Height	1.27mm
Length	38.1mm
Width	5.08mm
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

SDL-115-TT-10 Product Details

SDL-115-TT-10 Overview

Currently, it is packaged in Receptacle.The mounting type of the device is Through Hole.A Tube case is used to package the product.A product of the SDL Series, it belongs to the range of products of that series.Furthermore, there are other features available, such as LOW PROFILE, to name a few.Through Hole represents the mounting point for the part.-55°C~105°C Operating Temperature is the default operating temperature for the device.
