Name: TST-110-01-T-D
Brand: Samtec Inc.
SKU: TST-110-01-T-D
Price: 2.66000 USD
Availability: InStock

new-10%

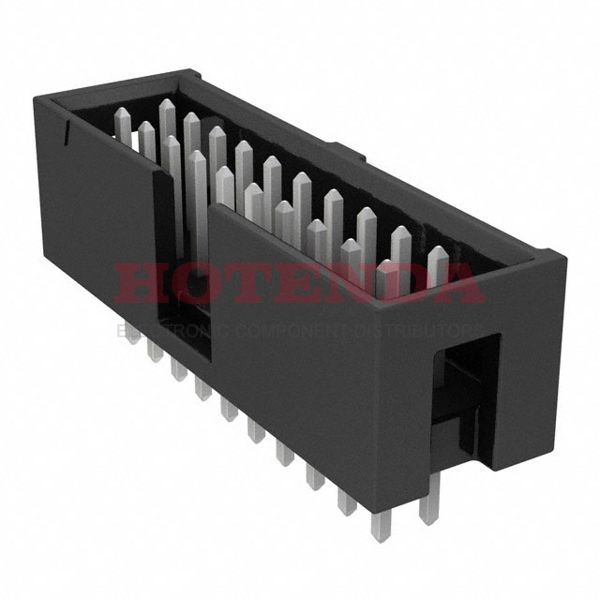

TST-110-01-T-D

Manufacturer part number:TST-110-01-T-D

Manufacturer:Samtec Inc.

Description:TST-110-01-T-D datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Samtec Inc. stock available on our website

Case Package:SOT-23

Datasheet:TST-110-01-T-D Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Housing Material	Polyester
Mounting Option 1	LOCKING
Operating Temperature	-55°C~105°C
Packaging	Bulk
Published	2003
Series	Flex Stack, TST
JESD-609 Code	e3
Feature	Keying Slot
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Header
Number of Positions	20
Number of Rows	2
Gender	Male
HTS Code	8536.69.40.40
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	3.4A per Contact
Orientation	Straight
Depth	9.27mm
Insulation Height	0.350 8.89mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Row Spacing - Mating	0.100 (2.54mm)
Contact Length - Post	0.115 2.92mm
Shrouding	Shrouded - 4 Wall
Number Of PCB Rows	2
Contact Length - Mating	0.250 6.35mm
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.365 inch
UL Flammability Code	94V-0
Overall Contact Length	0.480 12.19mm
Insulation Resistance	5000000000Ohm
Mating Contact Pitch	0.1 inch
Max Current Rating	3A
Polarization Key	POLARIZED HOUSING
Length	33.02mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant

TST-110-01-T-D Product Details

TST-110-01-T-D Overview

This product is packaged in a Header cartonThere is a mounting type of Through Hole for this device.It's packaged in a Bulk case.It belongs to the Flex Stack, TST Series of products.Many aspects of its Keying Slot feature increase its effectiveness.This device operates at a temperature of -55°C~105°C.
