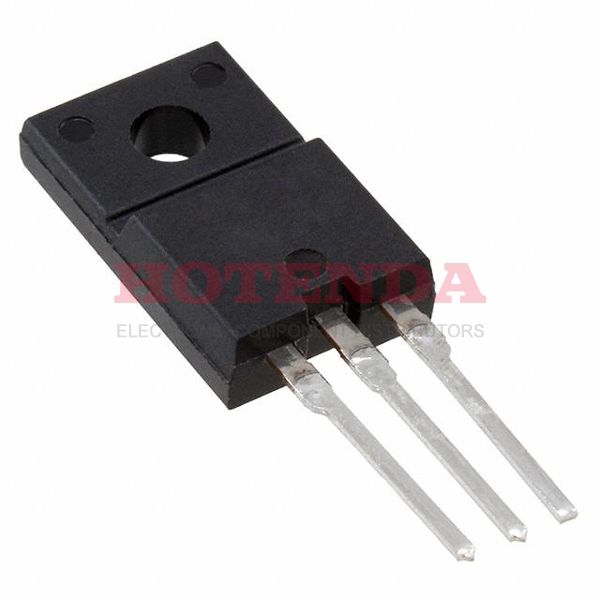

FMJ-2303

Name: FMJ-2303
Brand: Sanken
SKU: FMJ-2303
Availability: InStock

new-10%

Manufacturer part number:FMJ-2303

Manufacturer:Sanken

Description:FMJ-2303 datasheet pdf and Diodes - Rectifiers - Arrays product details from Sanken stock available on our website

Case Package:SOT-23

Datasheet:FMJ-2303 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	TO-220-3 Full Pack
Diode Element Material	SILICON
Packaging	Bulk
Published	2010
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
HTS Code	8541.10.00.80
Terminal Position	SINGLE
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Reach Compliance Code	unknown
[email protected] Reflow Temperature-Max (s)	NOT SPECIFIED
Pin Count	3
JESD-30 Code	R-PSFM-T3
Qualification Status	Not Qualified
Operating Temperature (Max)	150°C
Number of Elements	2
Element Configuration	Common Cathode
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Diode Type	Schottky
Current - Reverse Leakage @ Vr	15mA @ 30V
Voltage - Forward (Vf) (Max) @ If	480mV @ 15A
Case Connection	ISOLATED
Operating Temperature - Junction	-40°C~150°C
Application	GENERAL PURPOSE
Current - Average Rectified (Io)	15A
Max Reverse Voltage (DC)	30V
Average Rectified Current	30A
Number of Phases	1
JEDEC-95 Code	TO-220AB
Non-rep Pk Forward Current-Max	150A
Diode Configuration	1 Pair Common Cathode
RoHS Status	RoHS Compliant
