Name: C8051F123
Brand: Silicon Labs
SKU: C8051F123
Availability: InStock

new-10%

C8051F123

Manufacturer part number:C8051F123

Manufacturer:Silicon Labs

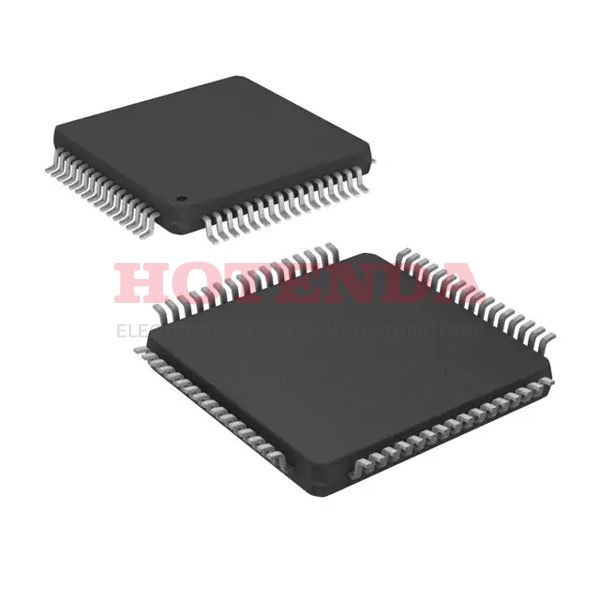

Description:128KB 128K x 8 FLASH 8051 8-Bit Microcontroller C8051F12x Series C8051F12 64 Pin 100MHz 3.3V 64-TQFP

Case Package:SOT-23

Datasheet:C8051F123 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	64-TQFP
Surface Mount	YES
Number of Pins	64
Operating Temperature	-40°C~85°C TA
Packaging	Tray
Series	C8051F12x
Published	2000
JESD-609 Code	e0
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	64
ECCN Code	3A001.A.3
Terminal Position	QUAD
Terminal Form	GULL WING
Supply Voltage	3.3V
Frequency	100MHz
Base Part Number	C8051F12
Pin Count	64
Operating Supply Voltage	3.3V
Number of Channels	6
Interface	2-Wire, EBI/EMI, I2C, SMBus, SPI, UART, USART
Memory Size	128kB
Oscillator Type	Internal
Number of I/O	32
RAM Size	8.25K x 8
Voltage - Supply (Vcc/Vdd)	3V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Core Processor	8051
Peripherals	Brown-out Detect/Reset, POR, PWM, Temp Sensor, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	128KB 128K x 8
Connectivity	EBI/EMI, SMBus (2-Wire/I2C), SPI, UART/USART
Bit Size	8
Data Converter	A/D 8x8b, 8x10b; D/A 2x12b
Watchdog Timer	Yes
Access Time	100 μs
Has ADC	YES
DMA Channels	NO
Data Bus Width	8b
PWM Channels	YES
DAC Channels	YES
Number of Timers/Counters	5
Address Bus Width	16
ROM (words)	131072
Length	10mm
Height Seated (Max)	1.2mm
Radiation Hardening	No
RoHS Status	Non-RoHS Compliant
Lead Free	Contains Lead

C8051F123 Product Details

C8051F123 Overview

This Microcontroller comes in a 64-TQFP package. This Microcontroller has 32 I/Os. The Mounting Type of the Microcontroller is Surface Mount. The MCU is based on the 8-Bit core. This Microcontroller's program memory type is FLASH. The Microcontroller runs in -40°C~85°C TA Operating Temperature. Microcontroller runs in C8051F12x Series. The size of the program memory of Microcontroller is 128KB 128K x 8. MCU is powered by 8051 Core Processor. The device belongs to MICROCONTROLLER uPs/uCs/Peripheral ICs Type. The MCU has a number of 64 terminals. Microcontroller comes with 8 bit size. The component always operates in 3.3V supply voltage. MCU chip has NO DMA channels. The part owns 128kB memory size. You can find alternatives through the base part number C8051F12. MCU's frequency is 100MHz. The device works in YES PWM channels. The pin number of the component remains 64. It has 5 timers/counters. It counts 64 pins.
