Name: 104076-1
Brand: TE Connectivity / AMP
SKU: 104076-1
Price: 4.29000 USD
Availability: InStock

new-10%

104076-1

Manufacturer part number:104076-1

Manufacturer:TE Connectivity / AMP

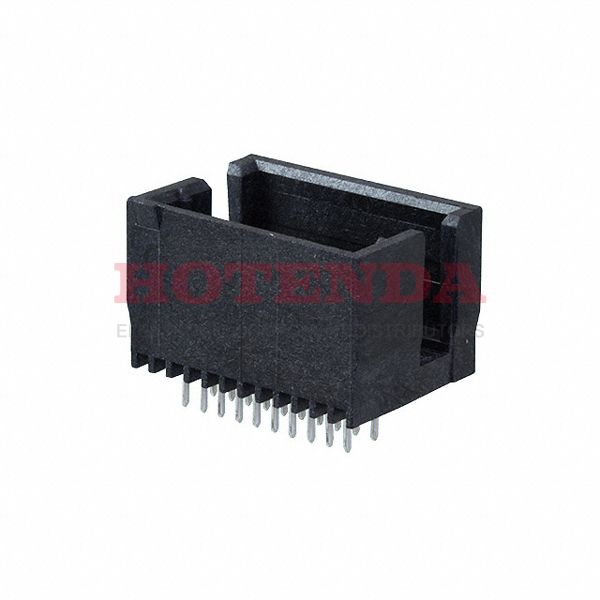

Description:2-Row Header, Pin, Plug Through Hole Bronze

Case Package:SOT-23

Datasheet:104076-1 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Bronze
Contact Plating	Gold
Mount	Through Hole
Contact Shape	Round
Housing Material	Thermoplastic
PCB Mounting Orientation	Vertical
JESD-609 Code	e0
Pbfree Code	no
Termination	Through Hole
ECCN Code	EAR99
Connector Type	Header, Pin, Plug
Max Operating Temperature	105°C
Min Operating Temperature	-65°C
Color	Black
Number of Rows	2
Additional Feature	AMPMODU, SHROUDED
HTS Code	8536.69.40.40
Subcategory	Headers and Edge Type Connectors
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	1.27mm
Orientation	Straight
Depth	11.23mm
Number of Conductors	ONE
Reference Standard	UL
Voltage - Rated AC	30V
Reliability	COMMERCIAL
Approval Agency	CSA
Row Spacing - Mating	2.54 mm
Number Of PCB Rows	2
Number of Contacts	20
Contact Length - Mating	3.175mm
PCB Contact Pattern	RECTANGULAR
Contact Gender	MALE
UL Flammability Code	94V-0
Lead Length	2.54mm
Operating Supply Voltage	30V
Rated Current (Signal)	3.6A
Contact Style	RND PIN-SKT
Contact Resistance	15mOhm
Insulation Resistance	1000000000Ohm
Body/Shell Style	RECEPTACLE
ELV	Compliant
Max Voltage Rating (AC)	30V
Polarization Key	POLARIZED HOUSING
Dielectric Withstanding Voltage	500VAC V
Contact Pattern	RECTANGULAR
Insertion Force-Max	1.39 N
Mating Post Length	2.54mm
Contact Rating (Current)	1A
Keyed	No
Length	16.36mm
Plating Thickness	30μin
PCB Thickness	1.397mm
RoHS Status	Non-RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Contains Lead

104076-1 Product Details

104076-1 Overview

It comes in Header, Pin, Plug packaging.In addition, there are other features such as AMPMODU, SHROUDED, to mention only a few.It's best to use it when the temperature is below 105°C.This device must operate at a minimum temperature of -65°C.The part is mounted by Through Hole.This memory's operating supply voltage is 30V.
