Name: 146262-3
Brand: TE Connectivity AMP Connectors
SKU: 146262-3
Price: 0.18000 USD
Availability: InStock

new-10%

146262-3

Manufacturer part number:146262-3

Manufacturer:TE Connectivity AMP Connectors

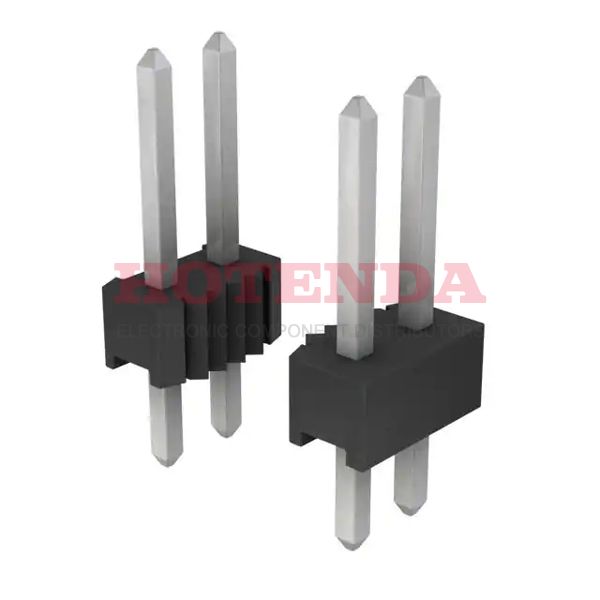

Description:AMPMODU Mod II Series 2-Row Header, Breakaway Kinked Pin, Solder Copper Alloy Bulk Through Hole Tin-Lead Liquid Crystal Polymer (LCP) 6-Position Board to Board or Cable 0.090 2.29mm Height

Case Package:SOT-23

Datasheet:146262-3 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 1 day ago)
Factory Lead Time	17 Weeks
Contact Material	Copper Alloy
Contact Plating	Lead, Nickel, Tin
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Housing Material	Thermoplastic
Operating Temperature	-65°C~105°C
Packaging	Bulk
Series	AMPMODU Mod II
Published	2010
JESD-609 Code	e0
Pbfree Code	no
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Kinked Pin, Solder
ECCN Code	EAR99
Connector Type	Header, Breakaway
Number of Positions	6
Number of Rows	2
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Tin-Lead
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Option	GENERAL PURPOSE
Orientation	Vertical
Insulation Height	0.090 2.29mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Current Rating	3A
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Number of Conductors	ONE
Reliability	COMMERCIAL
Approval Agency	CSA
Row Spacing - Mating	0.100 (2.54mm)
Contact Length - Post	0.125 3.18mm
Shrouding	Unshrouded
Number Of PCB Rows	2
Contact Length - Mating	0.318 8.08mm
PCB Contact Pattern	RECTANGULAR
Contact Gender	Male
UL Flammability Code	94V-0
Lead Length	3.175mm
Body Depth	0.09 inch
Operating Supply Voltage	30V
Rated Current (Signal)	3A
Overall Contact Length	0.533 13.55mm
Insulation Resistance	5GOhm
Mating Contact Pitch	0.1 inch
ELV	Non-Compliant
Dielectric Withstanding Voltage	750VAC V
Contact Current Rating	3A
Mating Post Length	8.08mm
High Temperature Housing	Yes
High Speed Serial Data Connector	No
Plating Thickness	100μin
Contact Finish Thickness - Mating	100.0μin 2.54μm
Contact Finish Thickness - Post	100.0μin 2.54μm
PCB Thickness	1.5748mm
Material Flammability Rating	UL94 V-0
RoHS Status	Non-RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Contains Lead

146262-3 Product Details

146262-3 Overview
