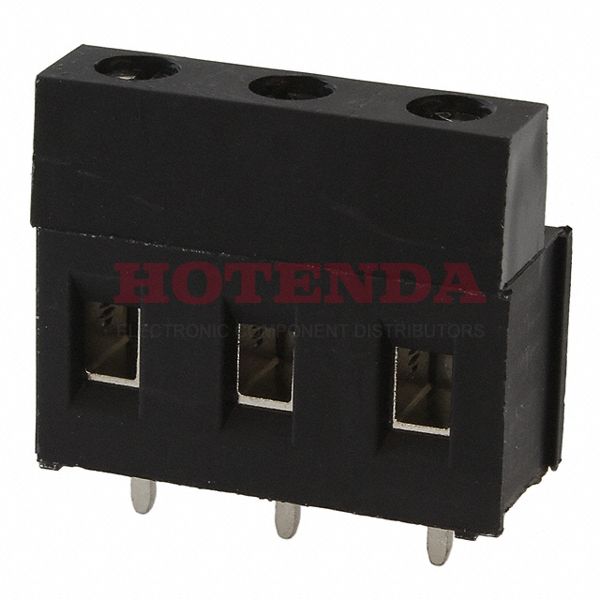

Name: 1546062-3
Brand: TE Connectivity AMP Connectors
SKU: 1546062-3
Price: 1.24000 USD
Availability: InStock

new-10%

1546062-3

Manufacturer part number:1546062-3

Manufacturer:TE Connectivity AMP Connectors

Description:0.295 7.50mm Black Bulk Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 12-30 AWG Buchanan

Case Package:SOT-23

Datasheet:1546062-3 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	11 Weeks
Contact Material	Brass
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Material - Plating	Brass - Tin Plated
Clamp Material - Plating	Brass - Nickel Plated
Screw Material - Plating	Brass - Nickel Plated
Packaging	Bulk
Series	Buchanan
Published	2007
Feature	Interlocking (Side)
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Receptacle
Number of Positions	3
Color	Black
Number of Rows	1
Voltage - Rated	300V
Pitch	0.295 7.50mm
Orientation	Straight
Depth	9mm
Current Rating	17.5A
Number of Contacts	3
Housing Color	Black
Wire Gauge	12-30 AWG
Voltage	300V
ELV	Compliant
Number of Circuits	3
Max Current Rating	17.5A
Plating	Brass
Number of Levels	1
Current	24A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Torque - Screw	0.79 Nm (7.0 Lb-In)
Positions Per Level	3
Thread Size	M3
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Number of Positions Per Level	3
Max Supply Voltage (AC)	300V
Length	23mm
Length - Tail	3.5mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1546062-3 Product Details

1546062-3 Overview

A Receptacle package is included with it.Its mounting type is Through Hole.Packaging is performed using a Bulk case.It is part of the Buchanan Series of products.A number of features make it more powerful because of its Interlocking (Side) feature.Through Hole mounts the part.3 circuits make up the part.
