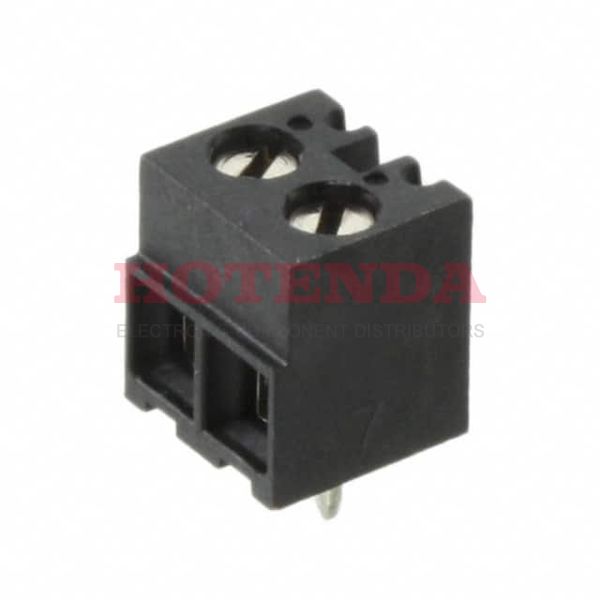

Name: 1776113-2
Brand: TE Connectivity AMP Connectors
SKU: 1776113-2
Price: 2.04000 USD
Availability: InStock

new-10%

1776113-2

Manufacturer part number:1776113-2

Manufacturer:TE Connectivity AMP Connectors

Description:0.150 3.81mm Black Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 16-28 AWG Buchanan

Case Package:SOT-23

Datasheet:1776113-2 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 1 week ago)
Factory Lead Time	21 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Contact Material - Plating	Copper Alloy - Tin Plated
Clamp Material - Plating	Copper Alloy - Nickel Plated
Screw Material - Plating	Copper Alloy - Nickel Plated
Operating Temperature	-40°C~110°C
Packaging	Bulk
Series	Buchanan
Published	2007
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle
Color	Black
Number of Rows	1
Voltage - Rated	150V
HTS Code	8536.69.40.40
Pitch	0.150 3.81mm
Orientation	Straight
Depth	7.3mm
Current Rating	12A
Wire Gauge	16-28 AWG
ELV	Compliant
Max Current Rating	12A
Number of Levels	1
Wire Gauge (Max)	28 AWG
Wire Gauge (Min)	16 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Number of Ways	2
Thread Size	M2
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Number of Positions Per Level	2
Max Supply Voltage (AC)	150V
Length	7.62mm
Length - Tail	2.6mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1776113-2 Product Details

1776113-2 Overview

The product is packaged in Receptacle.This device is mounted in the Through Hole position.It has been determined that a Bulk case is necessary to package the product.There is a product in the Buchanan Series.Part Through Hole is mounted to the part.As a result, the device runs at -40°C~110°C Operating Temperature.
