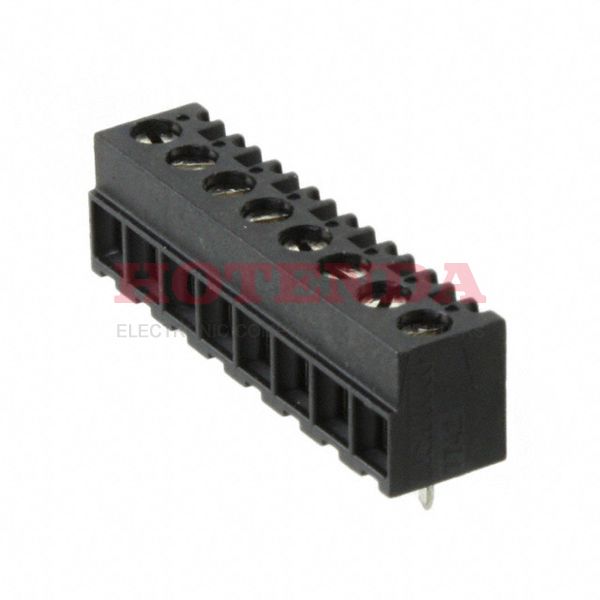

Name: 1776113-8
Brand: TE Connectivity AMP Connectors
SKU: 1776113-8
Price: 8.58000 USD
Availability: InStock

new

1776113-8

Manufacturer part number:1776113-8

Manufacturer:TE Connectivity AMP Connectors

Description:0.150 3.81mm Black Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 16-28 AWG Buchanan

Case Package:SOT-23

Datasheet:1776113-8 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 3 days ago)
Factory Lead Time	12 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Contact Material - Plating	Copper Alloy - Tin Plated
Clamp Material - Plating	Copper Alloy - Nickel Plated
Screw Material - Plating	Copper Alloy - Nickel Plated
Operating Temperature	-40°C~110°C
Packaging	Bulk
Series	Buchanan
Published	2005
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle
Color	Black
Number of Rows	1
Gender	Female
Voltage - Rated	150V
Pitch	0.150 3.81mm
Orientation	Straight
Depth	7.3mm
Current Rating	12A
Wire Gauge	16-28 AWG
ELV	Compliant
Max Current Rating	12A
Number of Levels	1
Wire Gauge (Max)	28 AWG
Wire Gauge (Min)	16 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Number of Ways	8
Thread Size	M2
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Number of Positions Per Level	8
Max Supply Voltage (AC)	150V
Length	30.48mm
Width	7.3mm
Length - Tail	2.6mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1776113-8 Product Details

1776113-8 Overview

A Receptacle package is included with it.Its mounting type is Through Hole.Packaging is performed using a Bulk case.It is part of the Buchanan Series of products.Through Hole mounts the part.There is no operating temperature for the device.
