Name: 1776252-5
Brand: TE Connectivity AMP Connectors
SKU: 1776252-5
Price: 1.34000 USD
Availability: InStock

new-10%

1776252-5

Manufacturer part number:1776252-5

Manufacturer:TE Connectivity AMP Connectors

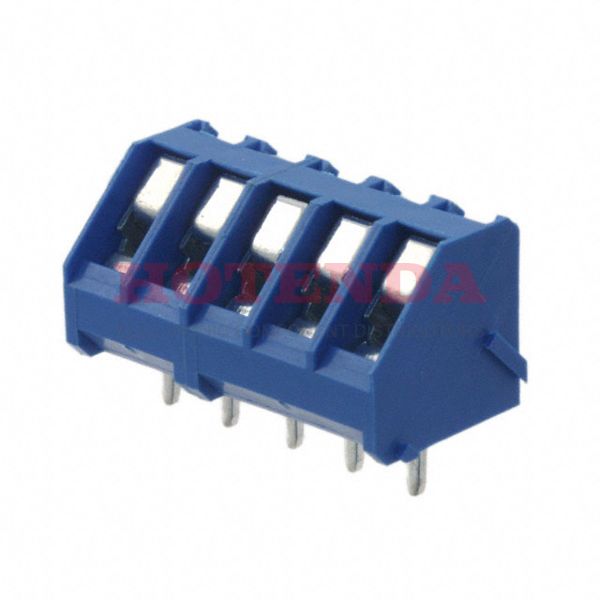

Description:0.197 5.00mm Blue Bulk Polyamide (PA66), Nylon 6/6 Through Hole 45° (135°) Angle with Board Screw - Leaf Spring, Wire Guard 1 Levels 14-22 AWG Buchanan

Case Package:SOT-23

Datasheet:1776252-5 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 1 week ago)
Factory Lead Time	23 Weeks
Contact Material	Brass
Contact Plating	Tin
Mount	Cable, Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Material - Plating	Brass - Tin Plated
Screw Material - Plating	Steel, Galvanized - Chromate Plated
Operating Temperature	-55°C~105°C
Packaging	Bulk
Series	Buchanan
Published	2007
Feature	Interlocking (Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Receptacle
Color	Blue
Number of Rows	1
Voltage - Rated	250V
Additional Feature	STANDARD: UL 94V-0, POLYAMIDE
Pitch	0.197 5.00mm
Orientation	Straight
Current Rating	10A
Number of Contacts	5
Wire Gauge	14-22 AWG
Voltage	300V
ELV	Compliant
Max Voltage Rating (AC)	250V
Max Current Rating	10A
Plating	Chromate, Galvanized, Steel
Number of Levels	1
Wire Gauge (Max)	22 AWG
Wire Gauge (Min)	14 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.45 Nm (4.0 Lb-In)
Number of Ways	15
Safety Approval	UL
Mating Orientation	45° (135°) Angle with Board
Wire Termination	Screw - Leaf Spring, Wire Guard
Screw Thread	M2.6
Length - Tail	4.3mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1776252-5 Product Details

1776252-5 Overview

The product is packaged in Receptacle.This device is mounted in the Through Hole position.It has been determined that a Bulk case is necessary to package the product.There is a product in the Buchanan Series.To name a few, there is also STANDARD: UL 94V-0, POLYAMIDE.There are a number of advantages to its Interlocking (Side) feature.Part Cable, Through Hole is mounted to the part.As a result, the device runs at -55°C~105°C Operating Temperature.
