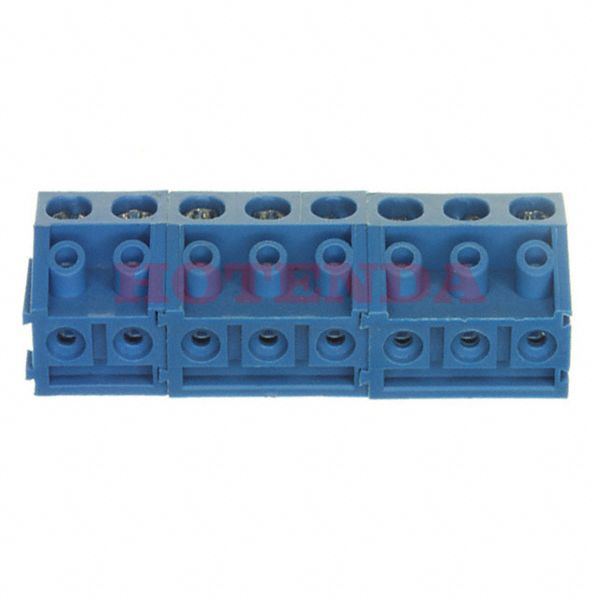

Name: 1776263-8
Brand: TE Connectivity AMP Connectors
SKU: 1776263-8
Price: 4.82000 USD
Availability: InStock

new-10%

1776263-8

Manufacturer part number:1776263-8

Manufacturer:TE Connectivity AMP Connectors

Description:1776263-8 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:1776263-8 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	14 Weeks
Lifecycle Status	ACTIVE (Last Updated: 3 days ago)
Contact Material	Brass
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Nylon
Operating Temperature	-40°C~105°C
Packaging	Bulk
Published	2007
Series	Buchanan
Feature	Interlocking (Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Plug
Type	Plug for Unshrouded Header
Color	Blue
Voltage - Rated	300V
Pitch	0.197 5.00mm
Orientation	Right Angle
Insulation Height	0.433 11.00mm
Current Rating	10A
Termination Style	Screw - Rising Cage Clamp
Voltage - Rated AC	300V
Number of Contacts	8
Voltage	300V
ELV	Compliant
Max Voltage Rating (AC)	300V
Max Current Rating	10A
Number of Levels	1
Current	10A
Wire Gauge (Max)	24 AWG
Wire Gauge (Min)	24 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	16-24 AWG
Torque - Screw	0.34 Nm (3.0 Lb-In)
Number of Ways	18
Plug Wire Entry	90°
Wire Gauge or Range - mm²	0.2-1.4mm2
Screw Size	M2.6
Max Supply Voltage (AC)	300V
Length	40mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1776263-8 Product Details

1776263-8 Overview

You get it in Plug packaging.Mounting type is Free Hanging (In-Line).To package the product, we use a Bulk case.This product is part of the Buchanan Series.A number of aspects of its Interlocking (Side) feature make it more powerful.Part Cable, Free Hanging is mounted to the part.Operating temperature is set to -40°C~105°C.As with other Plug for Unshrouded Header products, this part also offers a wide range of benefits.
