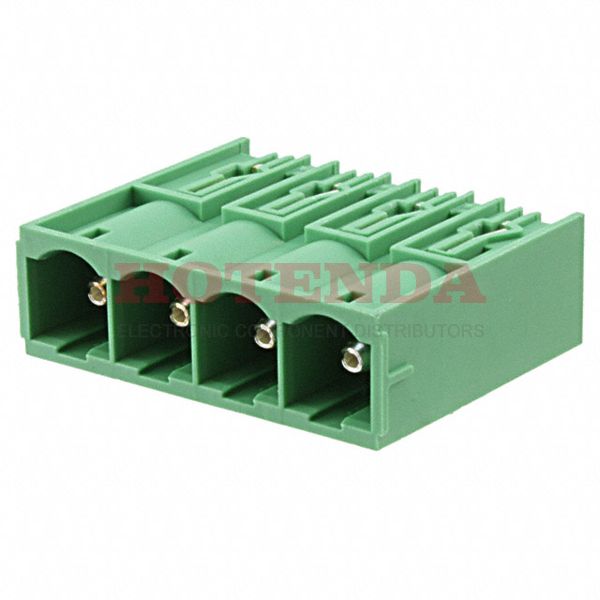

Name: 1996252
Brand: Phoenix Contact
SKU: 1996252
Price: 12.19000 USD
Availability: InStock

new

1996252

Manufacturer part number:1996252

Manufacturer:Phoenix Contact

Description:1996252 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1996252 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Silver
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	17.720011g
Packaging	Bulk
Published	2011
Series	COMBICON PC
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	4
Color	Green
Number of Rows	1
Voltage - Rated	1kV
Pitch	0.400 10.16mm
Orientation	Straight
Insulation Height	0.528 13.40mm
Current Rating	76A
Termination Style	Solder
Voltage	600V
Contact Tail Length	0.157 4.00mm
Number of Levels	1
Current	5A
Voltage - UL	300V
Number of Decks	1
Current - UL	66A
Number of Ways	4
Header Orientation	90°, Right Angle, Under Board
Number of Positions Per Level	4
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1996252 Product Details

1996252 Overview

This device's mounting type is Through Hole.We package the product with a Bulk case.It's part of the COMBICON PC Series.You've got Through Hole mounted on the part.There are a number of benefits that this part has in common with other Header, Male Pins, Shrouded (4 Side) products.
