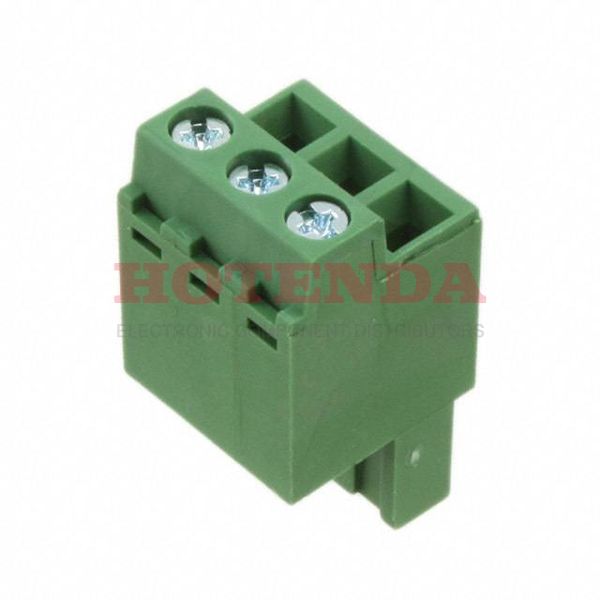

Name: 1986484-3
Brand: TE Connectivity AMP Connectors
SKU: 1986484-3
Price: 3.89000 USD
Availability: InStock

new-10%

1986484-3

Manufacturer part number:1986484-3

Manufacturer:TE Connectivity AMP Connectors

Description:Bulk 0.200 5.08mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets Polyamide (PA66), Nylon 6/6 Tin Phosphor Bronze

Case Package:SOT-23

Datasheet:1986484-3 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 1 week ago)
Factory Lead Time	17 Weeks
Contact Material	Phosphor Bronze
Contact Plating	Tin
Mount	Cable, Clip, Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide
Housing Material	Polyamide (PA66), Nylon 6/6
Operating Temperature	-40°C~105°C
Packaging	Bulk
Published	2010
Feature	Retention Latches (Non-Wire Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Connector Type	Plug
Type	Plug, Female Sockets
Number of Positions	3
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Color	Green
Number of Rows	1
Voltage - Rated	300V
Pitch	0.200 5.08mm
Orientation	Straight
Insulation Height	0.587 14.91mm
Current Rating	16A
Termination Style	Screw - Pressure Clip
Voltage - Rated AC	300V
Approval Agency	UL
Number of Contacts	3
Housing Color	Green
Voltage	300V
ELV	Compliant
Number of Circuits	3
Max Current Rating	16A
Number of Levels	1
Current	16A
Wire Gauge (Max)	24 AWG
Wire Gauge (Min)	24 AWG
Wire/Cable Gauge	24 AWG
Number of Poles	3
Contact Mating Finish	Tin
Voltage - UL	300V
Wire Gauge or Range - AWG	14-24 AWG
Current - UL	16A
Torque - Screw	0.79 Nm (7.0 Lb-In)
Positions Per Level	3
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2mm2
Wire Strip Length	10mm
Number of Positions Per Level	3
Length	15mm
Material Flammability Rating	UL94 V-0
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1986484-3 Product Details

1986484-3 Overview

Packaging is in the form of Plug.This device has a Free Hanging (In-Line) mounting type.An orange Bulk case is used to package the product.If the temperature is below 105°C, it's best to use it.-40°C is the minimum temperature for this device.Several benefits come from the Retention Latches (Non-Wire Side) feature.There is a mounting hole at Cable, Clip, Free Hanging.This part has 3 circuits.Devices operate at -40°C~105°C operating temperatures.There are many benefits that this part shares with other Plug, Female Sockets products as well.
