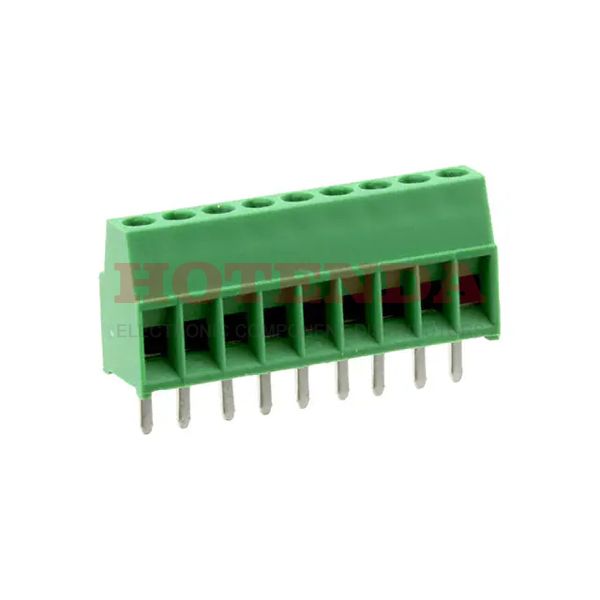

Name: 282834-9
Brand: TE Connectivity AMP Connectors
SKU: 282834-9
Price: 10.36000 USD
Availability: InStock

new

282834-9

Manufacturer part number:282834-9

Manufacturer:TE Connectivity AMP Connectors

Description:0.100 2.54mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 16-30 AWG Buchanan

Case Package:SOT-23

Datasheet:282834-9 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 4 days ago)
Factory Lead Time	12 Weeks
Contact Material	Brass
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Material - Plating	Brass - Tin Plated
Clamp Material - Plating	Brass - Nickel Plated
Screw Material - Plating	Steel, Stainless
Operating Temperature	-40°C~105°C
Packaging	Bulk
Series	Buchanan
Published	2007
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Connector Type	Receptacle
Color	Green
Number of Rows	1
Voltage - Rated	150V
Pitch	0.100 2.54mm
Orientation	Straight
Current Rating	10A
Number of Contacts	9
Wire Gauge	16-30 AWG
ELV	Compliant
Max Current Rating	10A
Plating	Brass, Steel
Number of Levels	1
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	16 AWG
Number of Decks	1
Terminal and Terminal Block Type	MODULAR TERMINAL BLOCK
Torque - Screw	0.2 Nm (1.7 Lb-In)
Number of Ways	9
Safety Approval	UL
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M1.6
Length - Tail	3.4mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

282834-9 Product Details

282834-9 Overview

Currently, it is packaged in Receptacle.The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the Buchanan Series, it belongs to the range of products of that series.Through Hole represents the mounting point for the part.-40°C~105°C Operating Temperature is the default operating temperature for the device.
