Name: 282837-9
Brand: TE Connectivity AMP Connectors
SKU: 282837-9
Price: 4.81000 USD
Availability: InStock

new-10%

282837-9

Manufacturer part number:282837-9

Manufacturer:TE Connectivity AMP Connectors

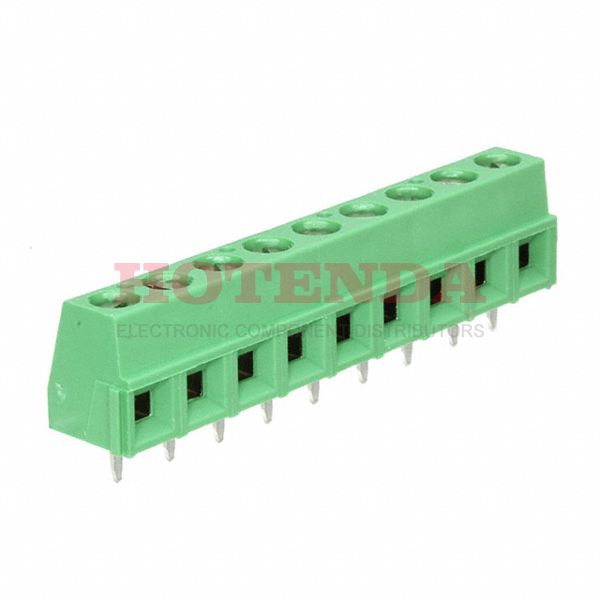

Description:0.200 5.08mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 16-28 AWG Buchanan

Case Package:SOT-23

Datasheet:282837-9 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 6 days ago)
Factory Lead Time	12 Weeks
Contact Material	Brass
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Material	Polyamide
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Material - Plating	Brass - Tin Plated
Clamp Material - Plating	Brass - Nickel Plated
Screw Material - Plating	Brass - Nickel Plated
Packaging	Bulk
Series	Buchanan
Published	2007
Feature	Interlocking (Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Connector Type	Receptacle
Color	Green
Number of Rows	1
Voltage - Rated	300V
Pitch	0.200 5.08mm
Orientation	Straight
Wire Gauge	16-28 AWG
Max Current Rating	13.5A
Number of Levels	1
Wire Gauge (Max)	28 AWG
Wire Gauge (Min)	16 AWG
Number of Decks	1
Terminal and Terminal Block Type	MODULAR TERMINAL BLOCK
Torque - Screw	0.68 Nm (6 Lb-In)
Number of Ways	9
Safety Approval	UL
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Number of Positions Per Level	9
Length - Tail	3.5mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Lead Free	Lead Free

282837-9 Product Details

282837-9 Overview

The product is packaged in Receptacle.This device is mounted in the Through Hole position.It has been determined that a Bulk case is necessary to package the product.There is a product in the Buchanan Series.There are a number of advantages to its Interlocking (Side) feature.Part Through Hole is mounted to the part.
