Name: 282841-4
Brand: TE Connectivity AMP Connectors
SKU: 282841-4
Price: 2.93000 USD
Availability: InStock

new-10%

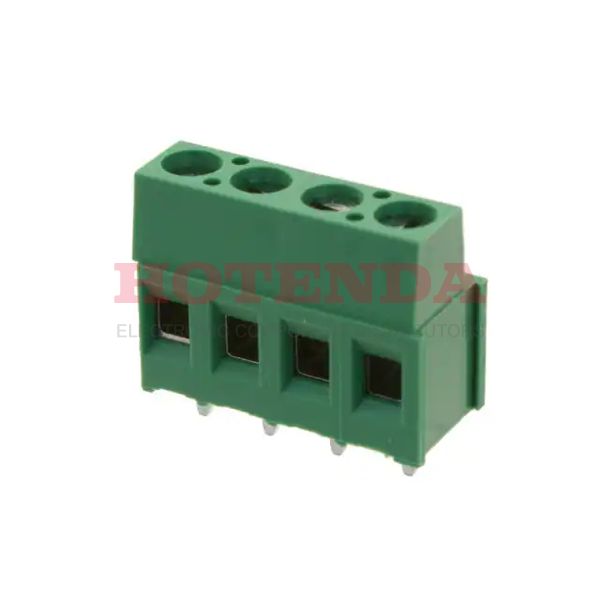

282841-4

Manufacturer part number:282841-4

Manufacturer:TE Connectivity AMP Connectors

Description:0.200 5.08mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 12-30 AWG Buchanan

Case Package:SOT-23

Datasheet:282841-4 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 5 days ago)
Factory Lead Time	21 Weeks
Contact Material	Brass
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Material - Plating	Brass - Tin Plated
Clamp Material - Plating	Brass - Nickel Plated
Screw Material - Plating	Brass - Nickel Plated
Packaging	Bulk
Series	Buchanan
Published	2007
Feature	Interlocking (Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Color	Green
Number of Rows	1
Voltage - Rated	300V
Pitch	0.200 5.08mm
Orientation	Straight
Depth	9mm
Current Rating	17.5A
Number of Contacts	4
Wire Gauge	12-30 AWG
ELV	Compliant
Max Voltage Rating (AC)	300V
Max Current Rating	17.5A
Number of Levels	1
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	30 AWG
Wire/Cable Gauge	30 AWG
Number of Decks	1
Terminal and Terminal Block Type	MODULAR TERMINAL BLOCK
Torque - Screw	0.79 Nm (7.0 Lb-In)
Number of Ways	2
Safety Approval	UL
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Max Supply Voltage (AC)	300V
Length	20.32mm
Length - Tail	3.5mm
REACH SVHC	Unknown
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

282841-4 Product Details

282841-4 Overview

Packaging for this item is Receptacle.There is a mounting type of Through Hole for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the Buchanan Series.You should use it when it's below 105°C.A minimum temperature of -40°C is required for the operation of this device.In many ways, its Interlocking (Side) feature makes it more powerful.Through Hole is used to mount the part.
