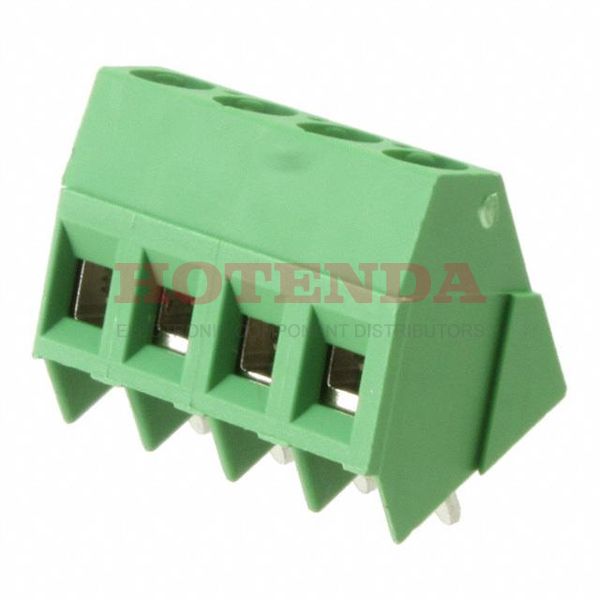

Name: 282847-4
Brand: TE Connectivity AMP Connectors
SKU: 282847-4
Price: 3.08000 USD
Availability: InStock

new-10%

282847-4

Manufacturer part number:282847-4

Manufacturer:TE Connectivity AMP Connectors

Description:0.200 5.08mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole 35° (145°) Angle with Board Screw - Rising Cage Clamp 1 Levels 12-30 AWG Buchanan

Case Package:SOT-23

Datasheet:282847-4 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 1 day ago)
Factory Lead Time	12 Weeks
Contact Material	Brass
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Material - Plating	Brass - Tin Plated
Clamp Material - Plating	Brass - Nickel Plated
Screw Material - Plating	Brass - Nickel Plated
Packaging	Bulk
Series	Buchanan
Published	2007
Feature	Interlocking (Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle
Color	Green
Number of Rows	1
Voltage - Rated	300V
Pitch	0.200 5.08mm
Depth	12.5mm
Current Rating	17.5A
Number of Contacts	4
Wire Gauge	12-30 AWG
Max Voltage Rating (AC)	300V
Max Current Rating	17.5A
Number of Levels	1
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	30 AWG
Number of Decks	1
Terminal and Terminal Block Type	MODULAR TERMINAL BLOCK
Torque - Screw	0.79 Nm (7.0 Lb-In)
Number of Ways	4
Safety Approval	UL
Mating Orientation	35° (145°) Angle with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Wire Cross Section	2.5 mm2
Max Supply Voltage (AC)	300V
Length	20.32mm
Length - Tail	3.81mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

282847-4 Product Details

282847-4 Overview

It comes in Receptacle packaging.The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It belongs to the Buchanan Series of products.Its Interlocking (Side) feature renders it more powerful in many ways.The part is mounted by Through Hole.
