Name: 282860-2
Brand: TE Connectivity AMP Connectors
SKU: 282860-2
Price: 0.53000 USD
Availability: InStock

new-10%

282860-2

Manufacturer part number:282860-2

Manufacturer:TE Connectivity AMP Connectors

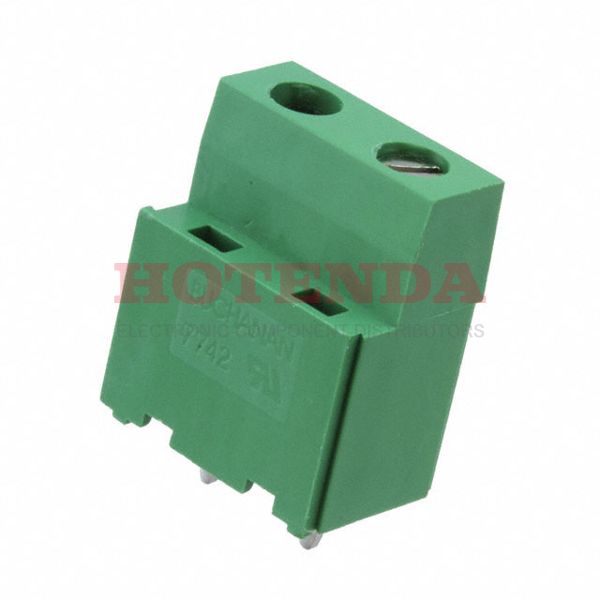

Description:0.295 7.50mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 12-30 AWG Buchanan

Case Package:SOT-23

Datasheet:282860-2 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	20 Weeks
Contact Material	Brass
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Material - Plating	Brass - Tin Plated
Clamp Material - Plating	Brass - Nickel Plated
Screw Material - Plating	Brass - Nickel Plated
Packaging	Bulk
Series	Buchanan
Published	2007
Feature	Interlocking (Side)
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Connector Type	Receptacle
Number of Positions	2
Color	Green
Number of Rows	1
Voltage - Rated	300V
Pitch	0.295 7.50mm
Orientation	Straight
Current Rating	24A
Number of Contacts	2
Housing Color	Green
Wire Gauge	12-30 AWG
Voltage	300V
ELV	Compliant
Number of Circuits	2
Plating	Brass
Number of Levels	1
Current	24A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Torque - Screw	0.79 Nm (7.0 Lb-In)
Positions Per Level	2
Thread Size	M3
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Number of Positions Per Level	2
Length - Tail	3.5mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

282860-2 Product Details

282860-2 Overview

The product comes in a package of Receptacle.Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the Buchanan Series.It is more powerful in many ways due to its Interlocking (Side) feature.It is mounted by Through Hole.It has 2 circuits.
