Name: 282868-3
Brand: TE Connectivity AMP Connectors
SKU: 282868-3
Price: 5.78000 USD
Availability: InStock

new-10%

282868-3

Manufacturer part number:282868-3

Manufacturer:TE Connectivity AMP Connectors

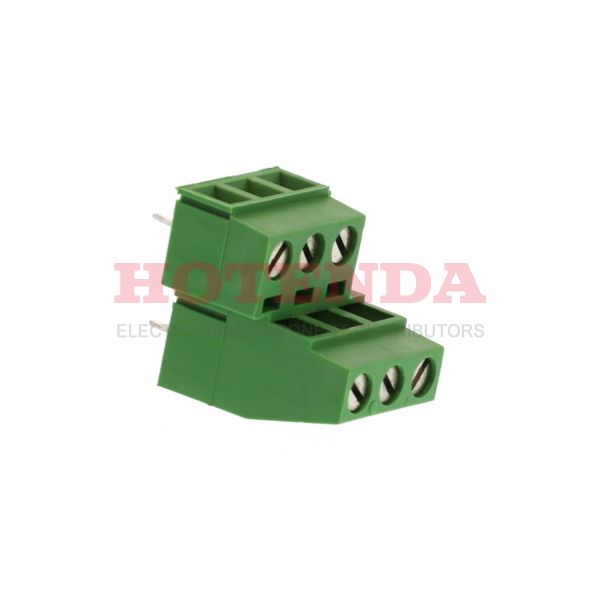

Description:0.197 5.00mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 2 Levels 12-30 AWG Buchanan

Case Package:SOT-23

Datasheet:282868-3 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 4 days ago)
Factory Lead Time	13 Weeks
Contact Material	Brass
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Material - Plating	Brass - Tin Plated
Clamp Material - Plating	Brass - Nickel Plated
Screw Material - Plating	Brass - Nickel Plated
Operating Temperature	-40°C~105°C
Packaging	Bulk
Series	Buchanan
Published	2007
Feature	Interlocking (Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle
Color	Green
Number of Rows	2
Voltage - Rated	300V
Additional Feature	94V-0, PA 6-6
Pitch	0.197 5.00mm
Orientation	Straight
Current Rating	13.5A
Wire Gauge	12-30 AWG
ELV	Compliant
Max Voltage Rating (AC)	300V
Max Current Rating	13.5A
Number of Levels	2
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	30 AWG
Number of Decks	2
Terminal and Terminal Block Type	MODULAR TERMINAL BLOCK
Torque - Screw	0.68 Nm (6 Lb-In)
Number of Ways	6
Safety Approval	UL
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Number of Positions Per Level	3
Length - Tail	3.5mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

282868-3 Product Details

282868-3 Overview

This product is packaged in a Receptacle box.Through Hole indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the Buchanan Series.Furthermore, there are other features such as 94V-0, PA 6-6, to name a few.In many ways, Interlocking (Side) makes it more powerful.By Through Hole, the part is mounted.Operating temperature is set to -40°C~105°C.
