Name: 284506-2
Brand: TE Connectivity AMP Connectors
SKU: 284506-2
Price: 1.65000 USD
Availability: InStock

new-10%

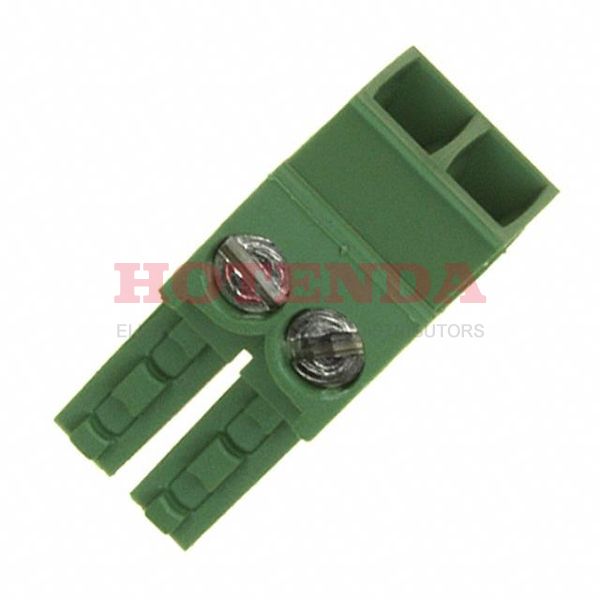

284506-2

Manufacturer part number:284506-2

Manufacturer:TE Connectivity AMP Connectors

Description:284506-2 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:284506-2 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	15 Weeks
Lifecycle Status	ACTIVE (Last Updated: 4 days ago)
Contact Material	Phosphor Bronze
Mount	Cable, Through Hole
Mounting Type	Free Hanging (In-Line)
Material	Nylon
Housing Material	Polyamide (PA66), Nylon 6/6
Operating Temperature	-40°C~110°C
Packaging	Bulk
Published	2007
Series	Buchanan
Feature	Side Stacking
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Plug
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	300V
Additional Feature	PA66, 94V-0, POLARIZED
HTS Code	8536.69.40.40
Pitch	0.138 3.50mm
Orientation	Right Angle
Depth	15.5mm
Insulation Height	0.437 11.10mm
Current Rating	11A
Termination Style	Screw - Rising Cage Clamp
Voltage - Rated AC	300V
Number of Contacts	2
Voltage	300V
ELV	Compliant
Max Voltage Rating (AC)	300V
Max Current Rating	11A
Number of Levels	1
Current	11A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	14 AWG
Wire/Cable Gauge	30 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	14-30 AWG
Torque - Screw	0.31 Nm (2.7 Lb-In)
Number of Ways	22
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.05-2mm2
Wire Strip Length	5-6mm
Screw Size	M2
Max Supply Voltage (AC)	300V
Length	7mm
Width	11.1mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	Unknown
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Not Applicable

284506-2 Product Details

284506-2 Overview

Packaging is in the form of Plug.Free Hanging (In-Line) is the mounting type.Packaging the product involves using a Bulk case.A member of the Buchanan Series.As well as PA66, 94V-0, POLARIZED, to name a few.With its Side Stacking feature, it is more powerful in many ways.There is a mounting hole at Cable, Through Hole.In this case, the device runs at -40°C~110°C Operating Temperature.There are a lot of similarities between this part and other Plug, Female Sockets products.
