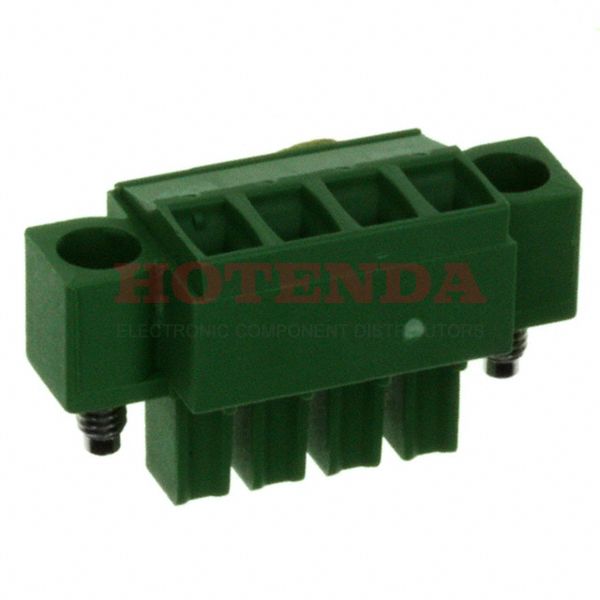

Name: 284511-4
Brand: TE Connectivity AMP Connectors
SKU: 284511-4
Price: 7.08000 USD
Availability: InStock

new-10%

284511-4

Manufacturer part number:284511-4

Manufacturer:TE Connectivity AMP Connectors

Description:284511-4 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:284511-4 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	15 Weeks
Lifecycle Status	ACTIVE (Last Updated: 2 days ago)
Contact Material	Phosphor Bronze
Contact Plating	Tin
Mount	Free Hanging, Panel, Through Hole
Mounting Type	Free Hanging (In-Line)
Material	Polyamide
Housing Material	Polyamide (PA66), Nylon 6/6
Operating Temperature	-40°C~110°C
Packaging	Bulk
Published	2007
Series	Buchanan
Feature	Mating Flange
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Plug
Type	Plug, Female Sockets
Number of Positions	4
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated	300V
Pitch	0.150 3.81mm
Orientation	Right Angle
Depth	15.5mm
Insulation Height	0.437 11.10mm
Current Rating	11A
Termination Style	Screw - Rising Cage Clamp
Voltage - Rated AC	300V
Number of Contacts	4
Housing Color	Green
Voltage	300V
ELV	Compliant
Number of Circuits	4
Max Current Rating	11A
Number of Levels	1
Current	11A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	14 AWG
Contact Mating Finish	Tin
Voltage - UL	300V
Wire Gauge or Range - AWG	14-30 AWG
Current - UL	11A
Torque - Screw	0.31 Nm (2.7 Lb-In)
Positions Per Level	4
Plug Wire Entry	180°
Thread Size	M2
Wire Gauge or Range - mm²	0.05-2mm2
Wire Strip Length	5-6mm
Number of Positions Per Level	4
Screw Size	M2
Max Supply Voltage (AC)	300V
Length	20.43mm
Width	15.5mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Not Applicable

284511-4 Product Details

284511-4 Overview

It comes in a Plug package.Free Hanging (In-Line) is the mounting type for the device.This product is packaged in a case marked Bulk.Product number Buchanan belongs to the Buchanan Series.Ideally, it should be used when the temperature is below 105°C.The device must operate at a temperature of -40°C at all times.Many aspects of its Mating Flange feature increase its effectiveness.Free Hanging, Panel, Through Hole is the mounting point for the part.Part 4 consists of circuits of 0 ohms.Device runs at -40°C~110°C Operating Temperature.As with other Plug, Female Sockets products, this part also offers a wide range of benefits.
