Name: 796635-6
Brand: TE Connectivity AMP Connectors
SKU: 796635-6
Price: 6.24000 USD
Availability: InStock

new-10%

796635-6

Manufacturer part number:796635-6

Manufacturer:TE Connectivity AMP Connectors

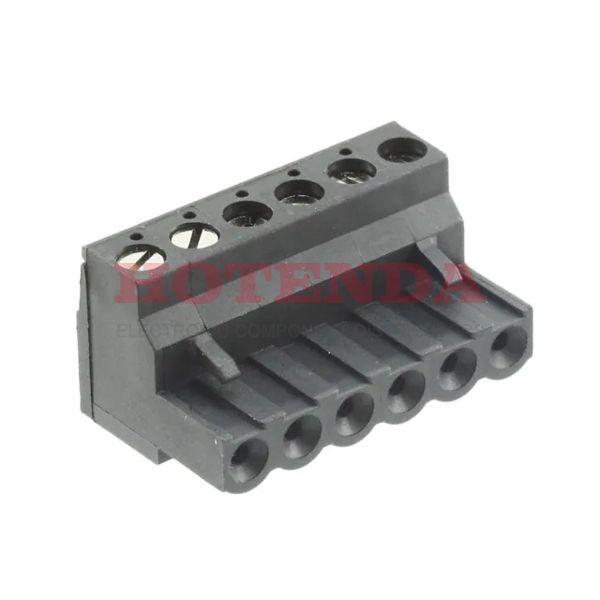

Description:796635-6 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:796635-6 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	21 Weeks
Lifecycle Status	ACTIVE (Last Updated: 6 days ago)
Contact Material	Phosphor Bronze
Mount	Cable, Through Hole
Mounting Type	Free Hanging (In-Line)
Package / Case	0508
Material	Nylon
Housing Material	Polyamide (PA66), Nylon 6/6
Operating Temperature	-40°C~110°C
Packaging	Bulk
Published	2007
Series	Buchanan
Feature	Retention Latches (Non-Wire Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Plug
Type	Plug, Female Sockets
Color	Black
Number of Rows	1
Gender	Male
Voltage - Rated	300V
Pitch	0.200 5.08mm
Orientation	Right Angle
Depth	15.5mm
Insulation Height	0.610 15.49mm
Current Rating	15A
Termination Style	Screw - Rising Cage Clamp
Voltage - Rated AC	300V
Voltage	300V
ELV	Compliant
Max Voltage Rating (AC)	300V
Max Current Rating	15A
Number of Levels	1
Current	15A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Torque - Screw	0.79 Nm (7.0 Lb-In)
Number of Ways	6
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.05-3mm2
Wire Strip Length	6-7.5mm
Number of Positions Per Level	6
Screw Size	M3
Wire Cross Section	2.5 mm2
Length	30.48mm
Width	18.4mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

796635-6 Product Details

796635-6 Overview

The product comes in a package of Plug.Free Hanging (In-Line) is the mounting type for the device.An Bulk case is utilized for packaging the product.This product is from the Buchanan Series.0508 indicates that the package contains an enclosed device.Many aspects of its Retention Latches (Non-Wire Side) feature increase its effectiveness.Cable, Through Hole is mounting the part.In this case, the device runs at -40°C~110°C Operating Temperature.There are a number of benefits that this part has in common with other Plug, Female Sockets products.
