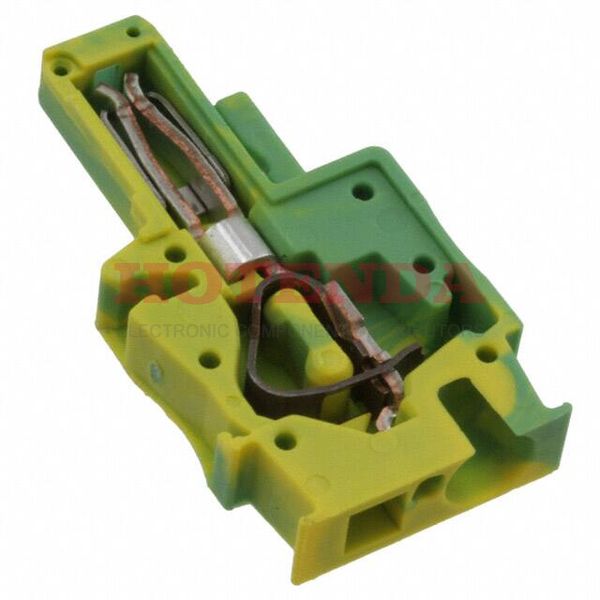

Name: 3042777
Brand: Phoenix Contact
SKU: 3042777
Price: 3.54000 USD
Availability: InStock

new-10%

3042777

Manufacturer part number:3042777

Manufacturer:Phoenix Contact

Description:3042777 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:3042777 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	4.329993g
Packaging	Bulk
Published	2010
Series	CLIPLINE ST-COMBI SP
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Connector Type	IDC, IDT
Type	Plug, Female Sockets
Color	Green, Yellow
Number of Rows	1
Voltage - Rated	800V
Additional Feature	STANDARD: UL 94V-0, PA
HTS Code	8536.69.40.40
Insulation Height	1.634 41.50mm
Current Rating	32A
Termination Style	Screwless - Spring Cage, Tension Clamp
Voltage	600V
Number of Levels	1
Current	30A
Wire Gauge (Max)	28 AWG
Wire Gauge (Min)	10 AWG
Number of Decks	1
Wire Gauge or Range - AWG	10-28 AWG
Voltage - IEC	800V
Number of Ways	1
Safety Approval	CB; CSA; CUL; GOST; UL; VDE
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.08-6mm2
Wire Strip Length	10mm
Current - IEC	32A
Wire Cross Section	6 mm2
Fastening Method	SPRING LOADED
Height	41.5mm
Length	21mm
Width	6.2mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

3042777 Product Details

3042777 Overview

Packaging for this item is IDC, IDT.Mounting type Free Hanging (In-Line) is assigned to the device.Packaging the product involves using a Bulk case.This is from the CLIPLINE ST-COMBI SP Series.In addition, there are other features such as STANDARD: UL 94V-0, PA, to mention only a few.By Free Hanging it's mounted.This part shares lots of benefits with other Plug, Female Sockets products.
