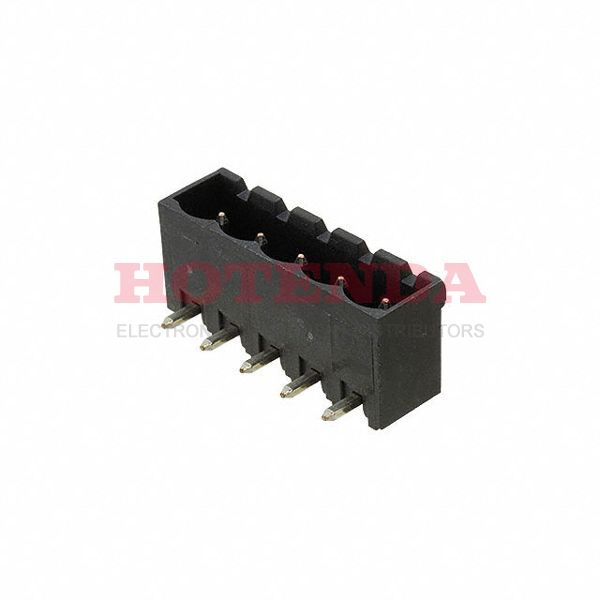

Name: 796639-5
Brand: TE Connectivity AMP Connectors
SKU: 796639-5
Price: 1.20000 USD
Availability: InStock

new-10%

796639-5

Manufacturer part number:796639-5

Manufacturer:TE Connectivity AMP Connectors

Description:796639-5 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:796639-5 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Lifecycle Status	ACTIVE (Last Updated: 2 days ago)
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Operating Temperature	-40°C~110°C
Packaging	Bulk
Published	2007
Series	Termi-Blok, Buchanan
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Header
Type	Header, Male Pins, Shrouded (4 Side)
Color	Black
Number of Rows	1
Voltage - Rated	300V
Pitch	0.200 5.08mm
Insulation Height	0.329 8.36mm
Current Rating	15A
Termination Style	Solder
Voltage - Rated AC	300V
Voltage	300V
Contact Tail Length	0.138 3.50mm
ELV	Compliant
Max Current Rating	15A
Number of Levels	1
Current	15A
Contact Mating Finish	Tin
Number of Decks	1
Number of Ways	25
Safety Approval	UL
Header Orientation	90°, Right Angle
Number of Positions Per Level	5
Fastening Method	CONNECTOR
Height	8.35mm
Length	27.2mm
Width	12mm
Length - Tail	3.5mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

796639-5 Product Details

796639-5 Overview

Packaging is Header.There is a Through Hole mounting type for the device.We use a Bulk case to package the product.This is from the Termi-Blok, Buchanan Series.Through Hole mounts the part.Running in -40°C~110°C Operating Temperature.Other Header, Male Pins, Shrouded (4 Side) products share lots of benefits with this part.
