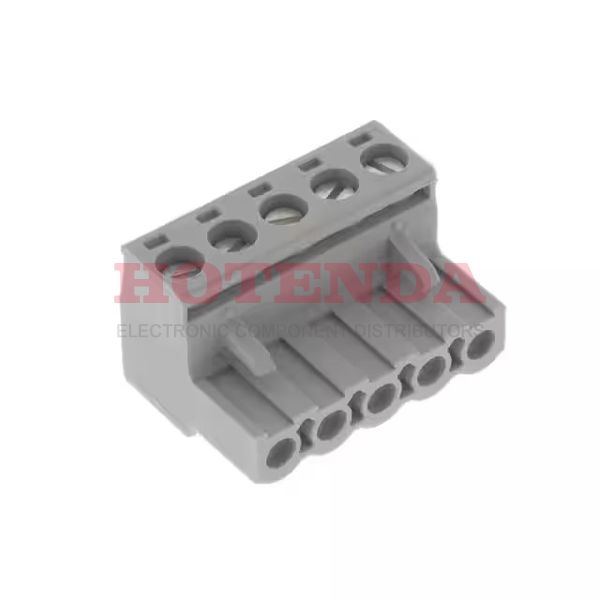

Name: 1849037
Brand: Phoenix Contact
SKU: 1849037
Price: 9.78000 USD
Availability: InStock

new

1849037

Manufacturer part number:1849037

Manufacturer:Phoenix Contact

Description:1849037 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1849037 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Weight	8.859991g
Packaging	Bulk
Published	2011
Series	COMBICON MSTB
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Type	Plug, Female Sockets
Number of Positions	5
Color	Gray
Number of Rows	1
Voltage - Rated	250V
Pitch	0.200 5.08mm
Insulation Height	0.591 15.00mm
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Number of Contacts	5
Housing Color	Grey
Voltage	300V
Max Current Rating	12A
Number of Levels	1
Current	15A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	24 AWG
Contact Mating Finish	Gold
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	5
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Screw Size	M3
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

1849037 Product Details

1849037 Overview

A Screw package is included with it.Mounting type Free Hanging (In-Line) is selected for the device.Packaging the product involves using a Bulk case.This product is part of the COMBICON MSTB Series.A number of features make it more powerful because of its Retention Latches (Non-Wire Side) feature.Cable, Free Hanging mounts the part.This part shares lots of benefits with other Plug, Female Sockets products.
