Name: 796640-6
Brand: TE Connectivity AMP Connectors
SKU: 796640-6
Price: 3.50000 USD
Availability: InStock

new-10%

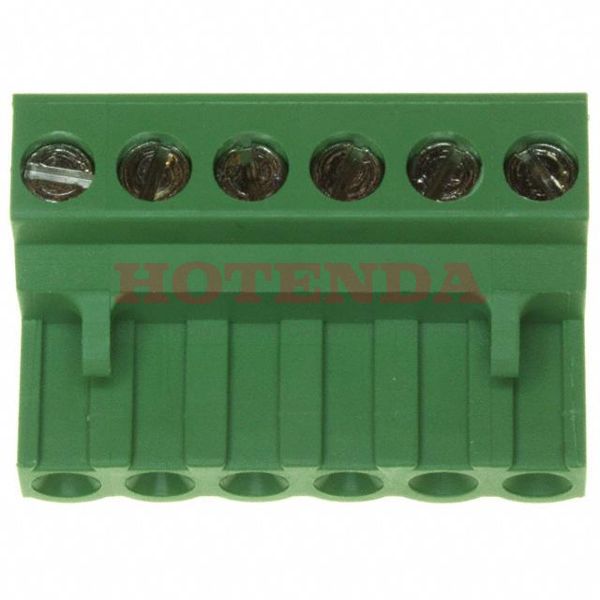

796640-6

Manufacturer part number:796640-6

Manufacturer:TE Connectivity AMP Connectors

Description:796640-6 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:796640-6 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	13 Weeks
Lifecycle Status	ACTIVE (Last Updated: 5 days ago)
Contact Material	Phosphor Bronze
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA66), Nylon 6/6
Operating Temperature	-40°C~110°C
Packaging	Bulk
Published	2007
Series	Buchanan
Feature	Retention Latches (Non-Wire Side), Side Stacking
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Plug
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	300V
Pitch	0.197 5.00mm
Orientation	Right Angle
Depth	18.4mm
Insulation Height	0.610 15.49mm
Current Rating	15A
Termination Style	Screw - Rising Cage Clamp
Voltage - Rated AC	300V
Approval Agency	UL
Number of Contacts	6
Voltage	300V
ELV	Compliant
Max Voltage Rating (AC)	300V
Max Current Rating	15A
Number of Levels	1
Current	15A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Wire/Cable Gauge	30 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Torque - Screw	0.79 Nm (7.0 Lb-In)
Number of Ways	6
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.05-3mm2
Wire Strip Length	6-7.5mm
Screw Size	M3
Wire Cross Section	2.5 mm2
Max Supply Voltage (AC)	300V
Length	30mm
Width	15.5mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	Unknown
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

796640-6 Product Details

796640-6 Overview

The packaging is Plug.Mounting type is Free Hanging (In-Line).A Bulk case is used for packaging.A product of the Buchanan Series, it belongs to the range of products of that series.In many ways, its Retention Latches (Non-Wire Side), Side Stacking feature makes it more powerful.Cable, Free Hanging is the mounting point for the part.It runs at -40°C~110°C Operating Temperature.Compared to other Plug, Female Sockets products, this part has a lot of benefits to offer.
