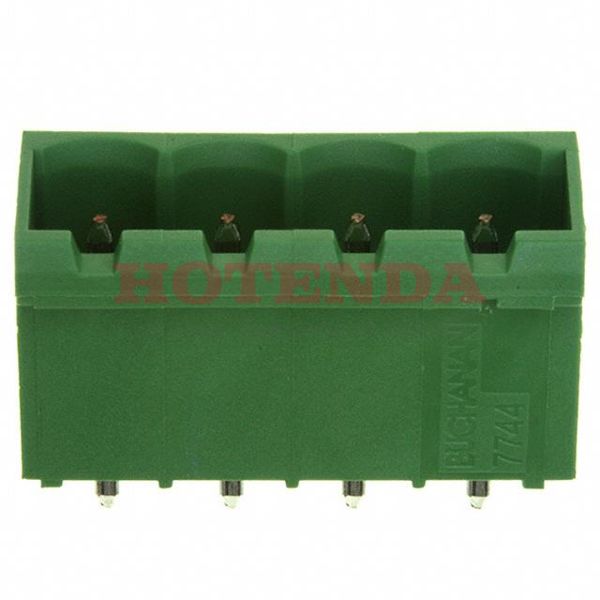

Name: 796642-4
Brand: TE Connectivity AMP Connectors
SKU: 796642-4
Price: 1.81000 USD
Availability: InStock

new-10%

796642-4

Manufacturer part number:796642-4

Manufacturer:TE Connectivity AMP Connectors

Description:796642-4 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:796642-4 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Lifecycle Status	ACTIVE (Last Updated: 3 days ago)
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Operating Temperature	-40°C~110°C
Packaging	Bulk
Published	2007
Series	Buchanan
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Header
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	4
Color	Green
Number of Rows	1
Voltage - Rated	300V
Pitch	0.197 5.00mm
Orientation	Straight
Depth	8.35mm
Insulation Height	0.472 12.00mm
Current Rating	15A
Termination Style	Solder
Voltage - Rated AC	300V
Voltage	300V
Contact Tail Length	0.138 3.50mm
Max Voltage Rating (AC)	300V
Max Current Rating	15A
Number of Levels	1
Current	15A
Contact Mating Finish	Tin
Number of Decks	1
Number of Ways	24
Safety Approval	UL
Header Orientation	Vertical
Number of Positions Per Level	4
Fastening Method	CONNECTOR
Length	22mm
Length - Tail	3.5mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

796642-4 Product Details

796642-4 Overview

Packaging is in the form of Header.Through Hole is the type of mounting for the device.We use a Bulk case to package the product.The product is a member of the Buchanan Series.Through Hole mounts the part.Running in -40°C~110°C Operating Temperature.Compared to other Header, Male Pins, Shrouded (4 Side) products, this part has a lot of benefits to offer.
