Name: 796682-2
Brand: TE Connectivity AMP Connectors
SKU: 796682-2
Price: 1.37000 USD
Availability: InStock

new-10%

796682-2

Manufacturer part number:796682-2

Manufacturer:TE Connectivity AMP Connectors

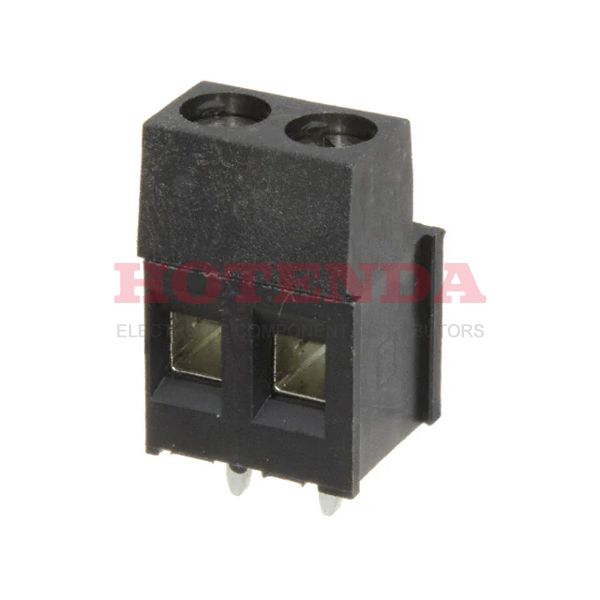

Description:0.197 5.00mm Black Bulk Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 12-30 AWG Buchanan

Case Package:SOT-23

Datasheet:796682-2 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 3 days ago)
Factory Lead Time	12 Weeks
Contact Material	Brass
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Material - Plating	Brass - Tin Plated
Clamp Material - Plating	Brass - Nickel Plated
Screw Material - Plating	Brass - Nickel Plated
Packaging	Bulk
Series	Buchanan
Published	2005
Feature	Interlocking (Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Color	Black
Number of Rows	1
Voltage - Rated	300V
Additional Feature	PA66, 94V-0
HTS Code	8536.69.40.40
Pitch	0.197 5.00mm
Orientation	Straight
Depth	9mm
Current Rating	17.5A
Number of Contacts	2
Wire Gauge	12-30 AWG
ELV	Compliant
Max Voltage Rating (AC)	300V
Max Current Rating	17.5A
Number of Levels	1
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	30 AWG
Number of Decks	1
Terminal and Terminal Block Type	MODULAR TERMINAL BLOCK
Torque - Screw	0.79 Nm (7.0 Lb-In)
Number of Ways	2
Safety Approval	UL
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Max Supply Voltage (AC)	300V
Height	15.5mm
Length	10.5mm
Width	9mm
Length - Tail	3.5mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

796682-2 Product Details

796682-2 Overview

A Receptacle package is included with it.Its mounting type is Through Hole.Packaging is performed using a Bulk case.It is part of the Buchanan Series of products.Additionally, there are other features, such as PA66, 94V-0.Whenever it's below 105°C, it's best to use it.The device must operate at a temperature of -40°C at all times.A number of features make it more powerful because of its Interlocking (Side) feature.Through Hole mounts the part.
