Name: 796748-3
Brand: TE Connectivity AMP Connectors
SKU: 796748-3
Price: 1.95000 USD
Availability: InStock

new-10%

796748-3

Manufacturer part number:796748-3

Manufacturer:TE Connectivity AMP Connectors

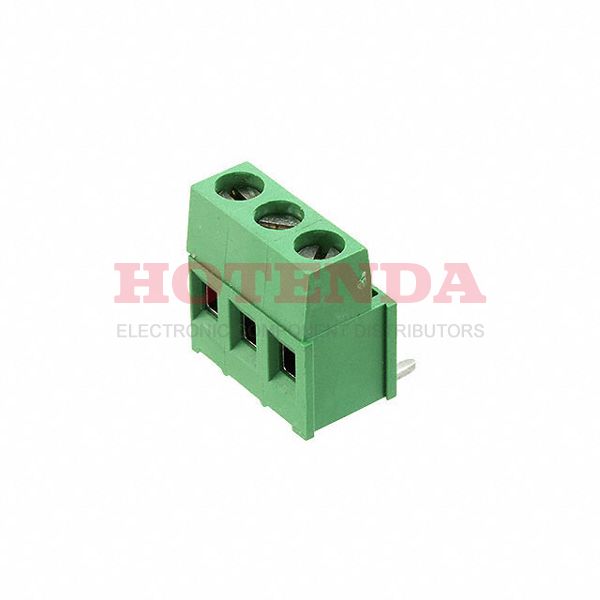

Description:0.197 5.00mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Vertical with Board Screw - Rising Cage Clamp 1 Levels 12-30 AWG Buchanan

Case Package:SOT-23

Datasheet:796748-3 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 3 days ago)
Factory Lead Time	12 Weeks
Contact Material	Brass
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Material - Plating	Brass - Tin Plated
Clamp Material - Plating	Brass - Nickel Plated
Screw Material - Plating	Brass - Nickel Plated
Packaging	Bulk
Series	Buchanan
Published	2007
Feature	Interlocking (Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Connector Type	Receptacle
Number of Positions	3
Color	Green
Number of Rows	1
Voltage - Rated	300V
Pitch	0.197 5.00mm
Orientation	Right Angle
Current Rating	17.5A
Number of Contacts	3
Housing Color	Green
Wire Gauge	12-30 AWG
Voltage	300V
ELV	Compliant
Number of Circuits	3
Max Current Rating	17.5A
Plating	Brass
Number of Levels	1
Current	17.5A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	30 AWG
Torque - Screw	0.79 Nm (7.0 Lb-In)
Positions Per Level	3
Thread Size	M3
Mating Orientation	Vertical with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Number of Positions Per Level	3
Height	9mm
Length	15mm
Width	15.5mm
Length - Tail	3.6mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

796748-3 Product Details

796748-3 Overview

The packaging contains Receptacle.There is a Through Hole mounting type for the device.This product is packaged in a case marked Bulk.Product number Buchanan belongs to the Buchanan Series.In many ways, it is more powerful due to its Interlocking (Side) feature.There is a Through Hole mount on the part.Circuits number 3 comprise the part.
