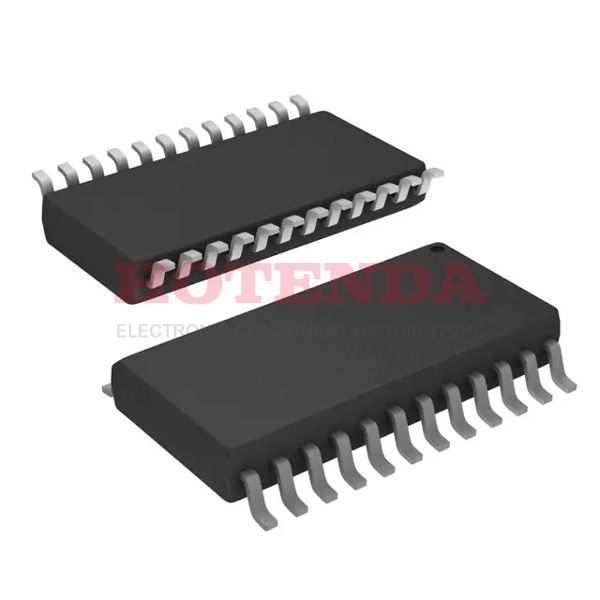

CY74FCT821BTSOCTG4 Overview
24-SOIC (0.295, 7.50mm Width)is the way it is packaged. D flip flop is included in the Tape & Reel (TR)package. Tri-State, Non-Invertedis the output configured for it. The trigger configured with it uses Positive Edge. Surface Mountmounts this electrical part. Powered by a 4.75V~5.25Vvolt supply, it operates as follows. In this case, the operating temperature is -40°C~85°C TA. There is D-Type type of electronic flip flop associated with this device. In terms of FPGAs, it belongs to the 74FCT series. The element count is 1 . It consumes 200μA of quiescent current without being affected by external factors. Terminations are 24. The 74FCT821 family contains this object. A voltage of 5V is used as the power supply for this D latch. JK flip flop input capacitance is 5pF farads. Devices in the FCTfamily are electronic devices. Surface Mount mounts this electronic component. As you can see from the design, it has pins with 24. In this device, the clock edge trigger type is Positive Edge. This device has the base part number FF/Latches. An electronic part designed with 10bits is used in this application. The maximal supply voltage (Vsup) reaches 5.25V. It is imperative that the supply voltage (Vsup) is maintained above 4.75Vin order to ensure normal operation. As a result of its reliability, this D flip flop is ideally suited for TAPE AND REEL. In order for the device to operate, it requires 5V power supplies. This flip flop has a total of 2ports. With an output current of 64mA, it is possible to design the device in any way you want. This input has 10lines.
CY74FCT821BTSOCTG4 Features
Tape & Reel (TR) package
74FCT series
24 pins
10 Bits
5V power supplies
CY74FCT821BTSOCTG4 Applications
There are a lot of Texas Instruments CY74FCT821BTSOCTG4 Flip Flops applications.
- Circuit Design
- Matched Rise and Fall
- Automotive
- Modulo – n – counter
- Pattern generators
- Shift Registers
- Asynchronous counter
- Storage Registers
- Memory
- Guaranteed simultaneous switching noise level
