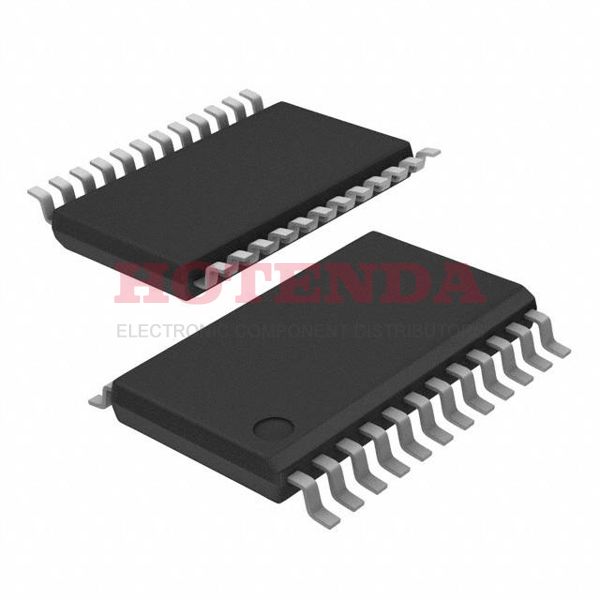

Name: SN75LPE185PWRE4
Brand: Texas Instruments
SKU: SN75LPE185PWRE4
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	24-TSSOP (0.173, 4.40mm Width)
Number of Pins	24
Operating Temperature	0°C~70°C
Packaging	Tape & Reel (TR)
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	24
ECCN Code	EAR99
Type	Transceiver
Subcategory	Line Driver or Receivers
Technology	BIPOLAR
Voltage - Supply	4.75V~5.25V
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Number of Functions	3
Supply Voltage	5V
[email protected] Reflow Temperature-Max (s)	NOT SPECIFIED
Base Part Number	75LPE185
Pin Count	24
Qualification Status	Not Qualified
Nominal Supply Current	1mA
Data Rate	256 kbps
Differential Output	NO
Protocol	RS232
Input Characteristics	SCHMITT TRIGGER
Number of Drivers/Receivers	3/5
Driver Number of Bits	3
Duplex	Full
Receiver Hysteresis	1V
Interface Standard	EIA-232-F; TIA-232-F; V.28
Receive Delay-Max	900 ns
Negative Supply Voltage-Nom	-12V
Transmit Delay-Max	1600 ns
Supply Voltage1-Nom	12V
Output Low Current-Max	0.002A
Number of Receivers	5
Out Swing-Min	10 V
High Level Input Current-Max	0.000001A
Height Seated (Max)	1.2mm
Length	7.8mm
Width	4.4mm
RoHS Status	ROHS3 Compliant

SN75LPE185PWRE4 Product Details

SN75LPE185PWRE4 Overview

LED drivers with the enhanced 24-TSSOP (0.173, 4.40mm Width) package will be able to drive a variety of common LEDs with ease.The Tape & Reel (TR) package houses this receiver.It has proved to be a valuable component for a variety of applications since it is a Transceiver can transceiver.Ideally, you should place this wide receiver on a Surface Mount-type PCB or development board.This differential driver uses 4.75V~5.25V for power supply.There can be up to 3/5 eligible receivers/drivers on the field at the same time with this electronic part.IC receiver likes this one are designed for use in applications where operating temperatures are 0°C~70°C.There is a voltage range of 5V for this line driver ic, so it can operate efficiently.In order to drive and receive signals from data, this wide receiver has 24 terminations integrated.This transceiver is packaged with 24 market standard pinoutsYou can search with 75LPE185 to get more variants of this part, since it identifies the product type, temperature, package, etc.An enhanced power dissipation control is provided by this 24-pin driver IC.Through optical transceiver downsizing and high-density Surface Mount mounting technologies, its package size is reduced dramatically.Using this ic receiver, you were able to achieve a resolution of 3 bits.It is possible to subcategoriLine Driver or Receiverse this rf transceiver module as Line Driver or Receivers.There are also 5 receivers in it as well.It is recommended to keep the operating temperature of the line driver ic above -12V.
