Name: TLV620612TDSGRQ1
Brand: Texas Instruments
SKU: TLV620612TDSGRQ1
Availability: InStock

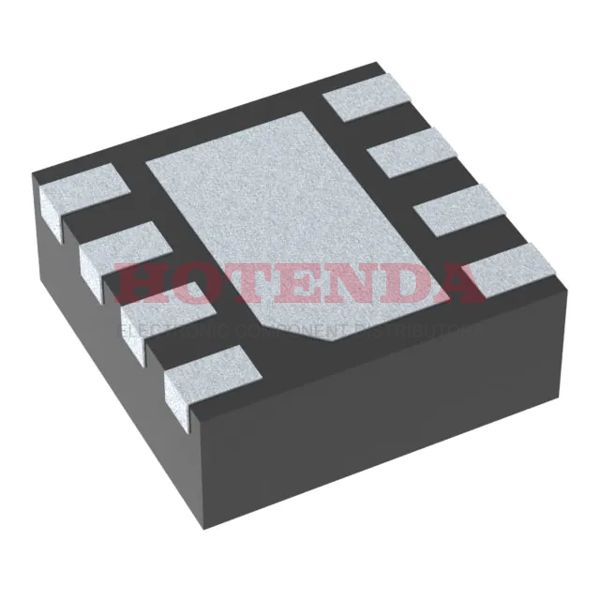

TLV620612TDSGRQ1

Manufacturer part number:TLV620612TDSGRQ1

Manufacturer:Texas Instruments

Description:8 Terminals 2.9V 8-Pin TLV620612 DC DC Voltage Regulator SWITCHING REGULATOR 1 Outputs 3MHz Tape & Reel (TR) 1.6A 8-WFDFN Exposed Pad

Case Package:SOT-23

Datasheet:TLV620612TDSGRQ1 Datasheet PDF

RoHs Status:non-compliant

Technical Specifications

Parameter Name	Value
Type	Parameter
Factory Lead Time	26 Weeks
Lifecycle Status	ACTIVE (Last Updated: 2 days ago)
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	8-WFDFN Exposed Pad
Number of Pins	8
Operating Temperature	-40°C~105°C TA
Packaging	Tape & Reel (TR)
Series	Automotive, AEC-Q100
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	2 (1 Year)
Number of Terminations	8
ECCN Code	EAR99
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Position	DUAL
Terminal Form	NO LEAD
Peak Reflow Temperature (Cel)	260
Terminal Pitch	0.5mm
[email protected] Reflow Temperature-Max (s)	NOT SPECIFIED
Base Part Number	TLV620612
Function	Step-Down
Number of Outputs	1
Efficiency	97 %
Voltage - Input (Max)	5.5V
Output Voltage	1.2V
Output Type	Fixed
Max Output Current	2A
Voltage - Input (Min)	2.9V
Input Voltage-Nom	3.6V
Analog IC - Other Type	SWITCHING REGULATOR
Output Configuration	Positive
Current - Output	1.6A
Quiescent Current	18μA
Topology	Buck
Control Mode	VOLTAGE-MODE
Frequency - Switching	3MHz
Control Technique	PULSE WIDTH MODULATION
Synchronous Rectifier	Yes
Min Output Voltage	1.2V
Height	800μm
Length	2mm
Width	2mm
Thickness	750μm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

TLV620612TDSGRQ1 Product Details

TLV620612TDSGRQ1 Overview

This harley voltage regulator utilizes the Tape & Reel (TR) package for optimized performance. In this voltage regulator, 8 terminations are present. The type of analog IC that this voltage regulator is equipped with is SWITCHING REGULATOR. Space savings are achieved by placing this voltage regulator in the 8-WFDFN Exposed Pad package. The voltage regulator is configured with 1 outputs. Adjusting voltage regulator's output pins generate Fixed output. Switching regulators like this one can be mounted on the Surface Mount mounting system. Operating at -40°C~105°C TA is the recommended temperature for adjusting voltage regulator's operation. This DC-DC switching regulator has a switching frequency of 3MHz. The voltage regulator can operate with a dc to dc voltage regulator's minimum input voltage of 2.9V. It features maximum design flexibility due to dc to dc voltage regulator's 1.6A output current. There is a voltage regulator maximum input voltage of 5.5V. 260 is essentially indestructible due to DC DC switching regulator's peak reflow temperature. Voltage regulator is designed to provide a nominal input voltage of 3.6V to meet the operation requirements. DC/DC regulators such as this one belong to the TLV620612 family of products. The voltage DC DC switching regulator can provide is up to 1.2V volts. For switching regulator operation, 8 pins are used. This voltage regulator 12v should be configured with an output voltage that is at least 1.2V. In order to meet the requirements of the switching regulator operation, the maximum output current reaches 2A A. A switching DC-DC regulator, it is a member of the Automotive, AEC-Q100 family of electronic voltage regulator 12vs. Voltage regulator consumes 18μA A of quiescent current without being affected by external factors.
