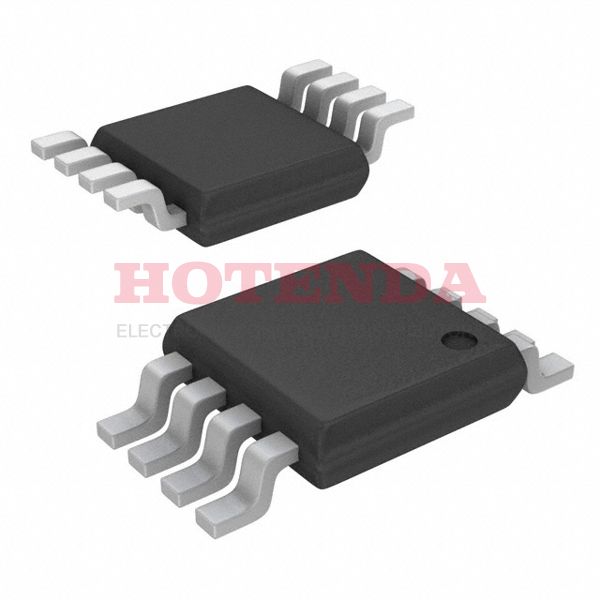

XC74WL74AASR Overview
It is embeded in 8-TSSOP, 8-MSOP (0.110, 2.80mm Width) case. Package Tape & Reel (TR)embeds it. This output is configured with Differential. Positive Edgeis the trigger it is configured with. Surface Mountis occupied by this electronic component. A voltage of 2V~5.5Vis required for its operation. In the operating environment, the temperature is -40°C~85°C TA. D-Typedescribes this flip flop. JK flip flop belongs to the 74WLseries of FPGAs. It should not exceed 115MHzin its output frequency. In total, there are 1 elements. As a result, it consumes 1μA quiescent current. There are 8 terminations, which are the practice of ending a transmission line with a device that matches the characteristic impedance of the line. D latch belongs to the 74WL74 family. Input capacitance of this device is 4pF farads. There is an electronic component mounted in the way of Surface Mount. A total of 8pins are provided on this board. A Positive Edgeclock edge trigger is used in this device. The RS flip flops belongs to FF/Latches base part number. The D latch runs on a voltage of 2/5.5V volts.
XC74WL74AASR Features
Tape & Reel (TR) package
74WL series
8 pins
2/5.5V power supplies
XC74WL74AASR Applications
There are a lot of Torex Semiconductor Ltd XC74WL74AASR Flip Flops applications.
- Convert a momentary switch to a toggle switch
- Computers
- Memory
- Frequency Divider circuits
- Shift registers
- Storage Registers
- Count Modes
- ESD protection
- Storage registers
- High Performance Logic for test systems
