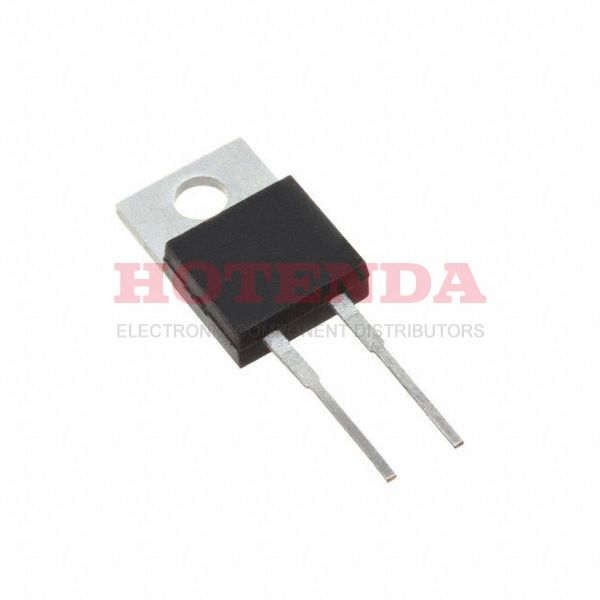

Name: FES16AT-E3/45
Brand: Vishay Semiconductor Diodes Division
SKU: FES16AT-E3/45
Price: 0.68000 USD
Availability: InStock

new-10%

FES16AT-E3/45

Manufacturer part number:FES16AT-E3/45

Manufacturer:Vishay Semiconductor Diodes Division

Description:FES16AT-E3/45 datasheet pdf and Diodes - Rectifiers - Single product details from Vishay Semiconductor Diodes Division stock available on our website

Case Package:SOT-23

Datasheet:FES16AT-E3/45 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	20 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	TO-220-2
Number of Pins	2
Diode Element Material	SILICON
Packaging	Tube
Published	2011
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Max Operating Temperature	150°C
Min Operating Temperature	-65°C
Additional Feature	FREE WHEELING DIODE
HTS Code	8541.10.00.80
Subcategory	Rectifier Diodes
Base Part Number	FES16A
Pin Count	3
Number of Elements	1
Element Configuration	Single
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Diode Type	Standard
Current - Reverse Leakage @ Vr	10μA @ 50V
Voltage - Forward (Vf) (Max) @ If	975mV @ 16A
Case Connection	CATHODE
Forward Current	16A
Operating Temperature - Junction	-65°C~150°C
Max Surge Current	250A
Application	EFFICIENCY
Max Reverse Voltage (DC)	50V
Average Rectified Current	16A
Number of Phases	1
Reverse Recovery Time	35 ns
Peak Reverse Current	10μA
Max Repetitive Reverse Voltage (Vrrm)	50V
Peak Non-Repetitive Surge Current	250A
Reverse Voltage	50V
Recovery Time	35 ns
Height	15.32mm
Length	10.54mm
Width	4.7mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

FES16AT-E3/45 Product Details

FES16AT-E3/45 Overview

Reverse voltage 50V is a reasonable value.A rectified current of 16A volts is averaged for this device.A forward current of 16A is allowed.The maximum surge current is 250A.As indicated by the data chart in the datasheets, the peak reverse is 10μA.
