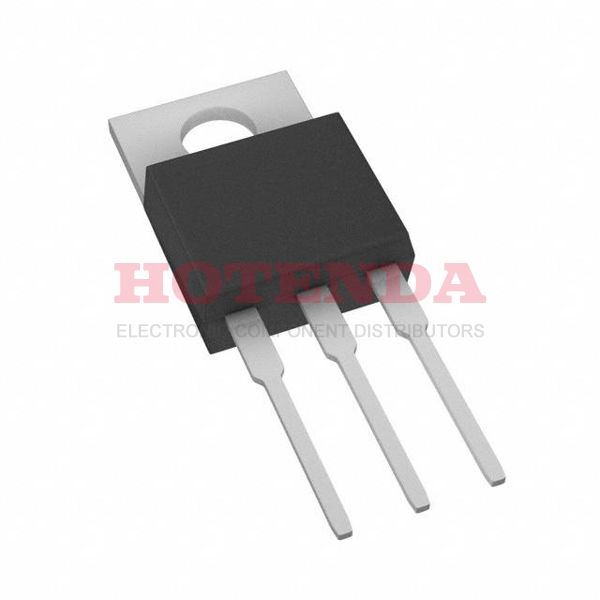

VS-30CTQ080GPBF datasheet pdf and Diodes - Rectifiers - Arrays product details from Vishay Semiconductor Diodes Division stock available on our website
SOT-23
VS-30CTQ080GPBF Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Mounting Type
Through Hole
Package / Case
TO-220-3
Packaging
Tube
Published
2009
Part Status
Obsolete
Moisture Sensitivity Level (MSL)
1 (Unlimited)
ECCN Code
EAR99
Reach Compliance Code
unknown
Speed
Fast Recovery =< 500ns, > 200mA (Io)
Diode Type
Schottky
Current - Reverse Leakage @ Vr
280μA @ 80V
Voltage - Forward (Vf) (Max) @ If
1.05V @ 30A
Operating Temperature - Junction
175°C Max
Voltage - DC Reverse (Vr) (Max)
80V
Current - Average Rectified (Io)
15A
Diode Configuration
1 Pair Common Cathode
RoHS Status
ROHS3 Compliant
In-Stock:3837 items
VS-30CTQ080GPBF Product Details
VS-30CTQ080GPBF Overview
VS-30CTQ080GPBF Features
VS-30CTQ080GPBF Applications
There are a lot of Vishay Semiconductor Diodes Division VS-30CTQ080GPBF applications of rectifier diode array.
Rectifiers for UBS
Free wheeling diode in low voltage converters
Rectifier for drives applications
Crowbar applications
Battery chargers
General Rectification
Rectifiers in switch mode power supplies (SMPS)
