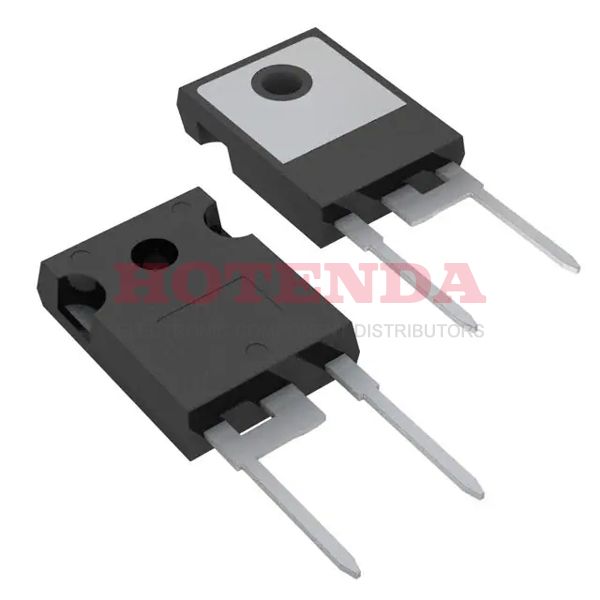

Name: VS-30EPH06PBF
Brand: Vishay Semiconductor Diodes Division
SKU: VS-30EPH06PBF
Availability: InStock

new-10%

VS-30EPH06PBF

Manufacturer part number:VS-30EPH06PBF

Manufacturer:Vishay Semiconductor Diodes Division

Description:VS-30EPH06PBF datasheet pdf and Diodes - Rectifiers - Single product details from Vishay Semiconductor Diodes Division stock available on our website

Case Package:SOT-23

Datasheet:VS-30EPH06PBF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	TO-247-2
Number of Pins	2
Diode Element Material	SILICON
Packaging	Tube
Published	2014
Series	FRED Pt®
JESD-609 Code	e3
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn) - with Nickel (Ni) barrier
Max Operating Temperature	175°C
Min Operating Temperature	-65°C
Additional Feature	FREE WHEELING DIODE, HIGH RELIABILITY, LOW LEAKAGE CURRENT
HTS Code	8541.10.00.80
Capacitance	33pF
Subcategory	Rectifier Diodes
Pin Count	2
Number of Elements	1
Element Configuration	Single
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Diode Type	Standard
Current - Reverse Leakage @ Vr	50μA @ 600V
Voltage - Forward (Vf) (Max) @ If	2.6V @ 30A
Case Connection	CATHODE
Forward Current	30A
Operating Temperature - Junction	-65°C~175°C
Max Surge Current	300A
Application	HYPERFAST SOFT RECOVERY
Forward Voltage	2.6V
Max Reverse Voltage (DC)	600V
Average Rectified Current	30A
Number of Phases	1
Reverse Recovery Time	35 ns
Peak Reverse Current	300nA
Max Repetitive Reverse Voltage (Vrrm)	600V
Peak Non-Repetitive Surge Current	300A
Reverse Voltage	600V
Max Forward Surge Current (Ifsm)	300A
Recovery Time	35 ns
Max Junction Temperature (Tj)	175°C
Height	24.99mm
Length	15.9mm
Width	5.3mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

VS-30EPH06PBF Product Details

VS-30EPH06PBF Overview

An acceptable reverse voltage would be 600V.Devices with this rating have an average rectified current of 30A volts.There is no limit to the forward current value.300A is the maximum value of surge current.A device that has a capacitance of 33pF can provide a value of 33pF.In the datasheets, the peak reverse is 300nA, as indicated by the data chart.
