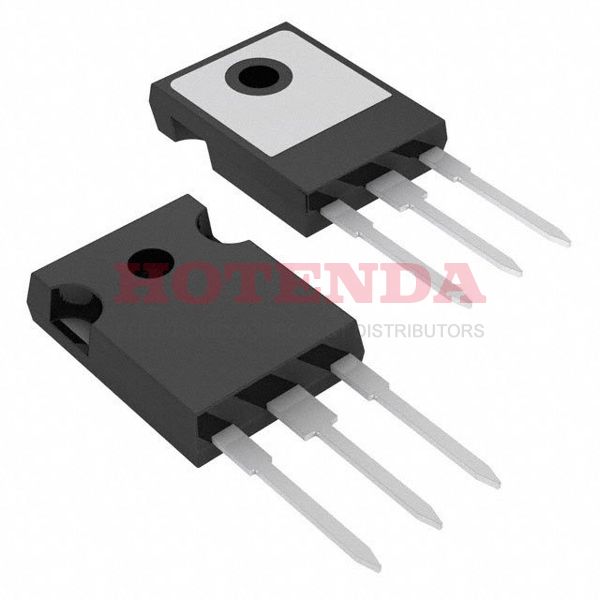

Name: VS-40L40CWPBF
Brand: Vishay Semiconductor Diodes Division
SKU: VS-40L40CWPBF
Availability: InStock

new-10%

VS-40L40CWPBF

Manufacturer part number:VS-40L40CWPBF

Manufacturer:Vishay Semiconductor Diodes Division

Description:VS-40L40CWPBF datasheet pdf and Diodes - Rectifiers - Arrays product details from Vishay Semiconductor Diodes Division stock available on our website

Case Package:SOT-23

Datasheet:VS-40L40CWPBF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	11 Weeks
Mounting Type	Through Hole
Package / Case	TO-247-3
Surface Mount	NO
Number of Pins	3
Diode Element Material	SILICON
Packaging	Tube
Published	2014
JESD-609 Code	e3
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
ECCN Code	EAR99
Terminal Finish	MATTE TIN OVER NICKEL
Max Operating Temperature	150°C
Min Operating Temperature	-55°C
HTS Code	8541.10.00.80
Terminal Position	SINGLE
Peak Reflow Temperature (Cel)	NOT APPLICABLE
Reach Compliance Code	unknown
[email protected] Reflow Temperature-Max (s)	NOT APPLICABLE
Number of Elements	2
Element Configuration	Common Cathode
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Diode Type	Schottky
Current - Reverse Leakage @ Vr	1.5mA @ 40V
Voltage - Forward (Vf) (Max) @ If	530mV @ 20A
Max Reverse Leakage Current	1.5mA
Operating Temperature - Junction	-55°C~150°C
Max Surge Current	1.24kA
Output Current-Max	20A
Application	GENERAL PURPOSE
Breakdown Voltage	40V
Current - Average Rectified (Io)	20A
Number of Phases	1
JEDEC-95 Code	TO-247AC
Diode Configuration	1 Pair Common Cathode
RoHS Status	ROHS3 Compliant

VS-40L40CWPBF Product Details

VS-40L40CWPBF Overview

The maximum output voltage can be set to 20A.Array is important to monArrayor the surge current and make sure that Array does not exceed 1.24kA.A semiconductor device's maximum reverse leakage current is 1.5mA, which is the current created by its reverse bias.
