Name: 1174720000
Brand: Weidmüller
SKU: 1174720000
Price: 13.38000 USD
Availability: InStock

new

1174720000

Manufacturer part number:1174720000

Manufacturer:Weidmüller

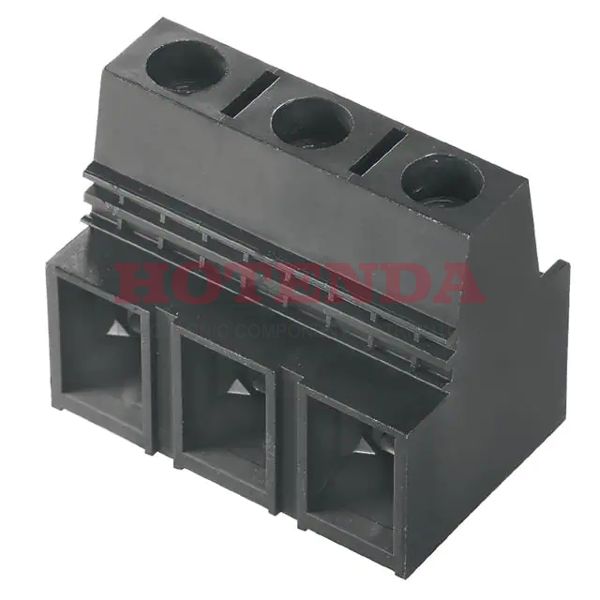

Description:0.591 15.00mm Black Bulk Thermoplastic, Wemid Through Hole Horizontal with Board Screw - Clamping Yoke, Tension Sleeve 1 Levels 4-16 AWG Omnimate LX

Case Package:SOT-23

Datasheet:1174720000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Thermoplastic, Wemid
Contact Material - Plating	Copper Alloy - Tin Plated
Operating Temperature	-50°C~120°C
Packaging	Bulk
Series	Omnimate LX
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Color	Black
Voltage - Rated	600V
Pitch	0.591 15.00mm
Current Rating	5A
Approval Agency	CSA, UR
Wire Gauge	4-16 AWG
Number of Levels	1
Current	85A
Wire Gauge (Max)	16 AWG
Wire Gauge (Min)	4 AWG
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	2.4-4 Nm (21.2-35.4 Lb-In)
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Clamping Yoke, Tension Sleeve
Screw Thread	M5
Hole Diameter	1.6 mm
Number of Positions Per Level	3
Stripping Length	16mm
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1174720000 Product Details

1174720000 Overview

Its mounting type is Through Hole.Packaging is performed using a Bulk case.It is part of the Omnimate LX Series of products.Through Hole mounts the part.There is no operating temperature for the device.
