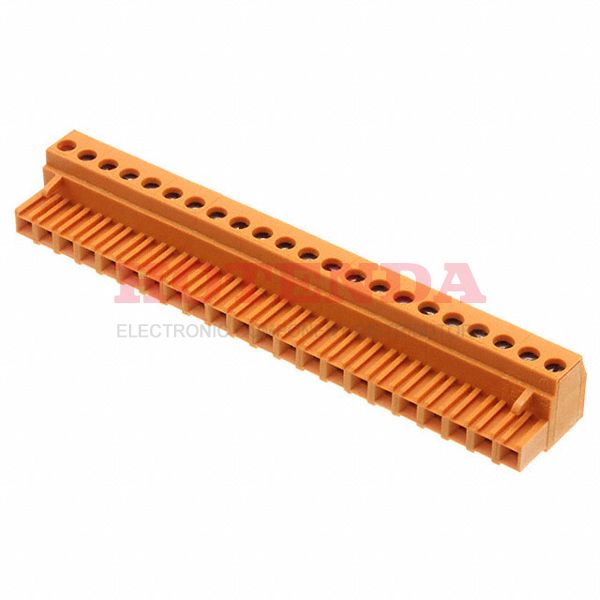

1314260000 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 8 Weeks
Contact MaterialCopper Alloy
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polybutylene Terephthalate (PBT), Glass Filled
Operating Temperature-50°C~120°C
PackagingBulk
Published 2004
Series Unimate BLA
JESD-609 Code e3
Feature Retention Latches (Non-Wire Side)
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Termination Screw
Type Plug, Female Sockets
Number of Positions 22
Color Orange
Number of Rows 2
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.200 5.08mm
Orientation Right Angle
Insulation Height 0.598 15.19mm
Termination Style Screw - Clamping Yoke (Tension Sleeve)
Number of Contacts 22
UL Flammability Code 94V-0
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 12 AWG
Contact Mating Finish Tin
Wire Gauge or Range - AWG 12-26 AWG
Voltage - IEC 400V
Torque - Screw 0.4-0.5 Nm (3.5-4.4 Lb-In)
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.2-2.5mm2
Wire Strip Length 7mm
Current - IEC 17.5A
Screw Size M2.5
Height 15.2mm
Length 112mm
Width 20mm
Material Flammability Rating UL94 V-0
Radiation HardeningNo
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
In-Stock:911 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$15.43000$15.43
10$14.81600$148.16
25$14.30160$357.54
50$13.78720$689.36
100$13.37570$1337.57
250$13.11848$3279.62
500$12.86126$6430.63

1314260000 Product Details

1314260000 Overview


Free Hanging (In-Line) is the mount type.It's packaged in a Bulk case.Unimate BLA Series product.In many ways, its Retention Latches (Non-Wire Side) feature makes it more powerful.There is a mounting hole at Cable, Free Hanging.Device runs in -50°C~120°C operating temperature.As with other Plug, Female Sockets products, this part has a lot of benefits.
