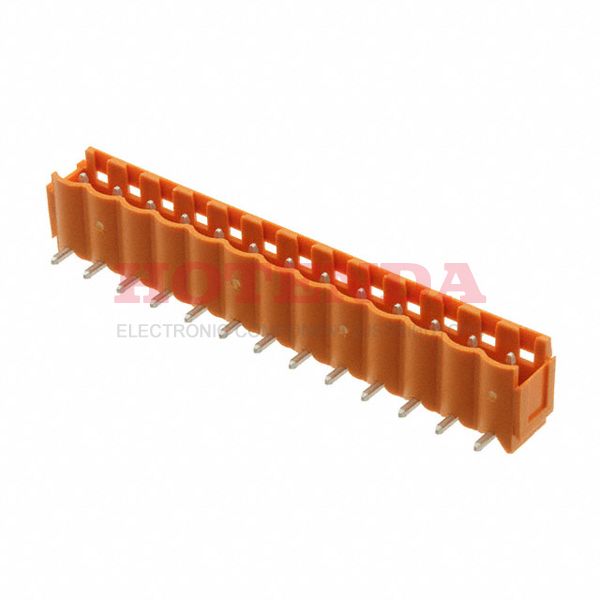

Name: 1511460000
Brand: Weidmüller
SKU: 1511460000
Price: 4.64000 USD
Availability: InStock

new-10%

1511460000

Manufacturer part number:1511460000

Manufacturer:Weidmüller

Description:1511460000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1511460000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	14 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2004
Series	Omnimate SL
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Type	Header, Male Pins, Shrouded (4 Side)
Color	Orange
Number of Rows	1
HTS Code	8536.69.40.40
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.200 5.08mm
Total Number of Contacts	13
Orientation	Right Angle
Ingress Protection	IP20
Depth	12mm
Insulation Height	0.330 8.38mm
Termination Style	Solder
UL Flammability Code	94V-0
Voltage	300V
Contact Tail Length	0.126 3.20mm
Max Current Rating	10A
Number of Levels	1
Current	10A
Contact Mating Finish	Tin
Current - UL	15A
Voltage - IEC	400V
Header Orientation	90°, Right Angle
Current - IEC	18A
Number of Positions Per Level	13
Length	68.04mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant

1511460000 Product Details

1511460000 Overview

A Through Hole mounting type is specified for the device.Packaging for the product is carried out via a Bulk case.This product is from the Omnimate SL Series.There's a Through Hole on the part.-50°C~100°C Operating Temperature is the default operating temperature for the device.As with other Header, Male Pins, Shrouded (4 Side) products, this part has a lot of benefits.
