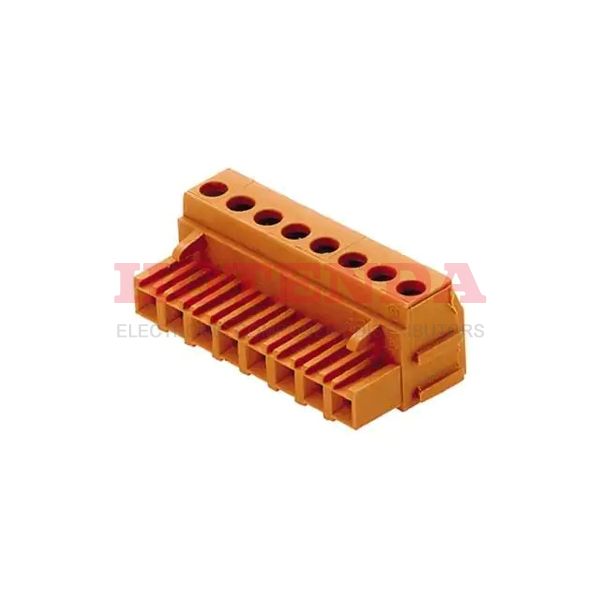

Name: 1356860000
Brand: Weidmüller
SKU: 1356860000
Price: 8.30000 USD
Availability: InStock

new

1356860000

Manufacturer part number:1356860000

Manufacturer:Weidmüller

Description:1356860000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1356860000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
Operating Temperature	-50°C~120°C
Packaging	Bulk
Published	2008
Series	Unimate BLA
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Screw
Type	Plug, Female Sockets
Color	Orange
Number of Rows	2
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.200 5.08mm
Orientation	Right Angle
Insulation Height	0.598 15.19mm
Termination Style	Screw - Clamping Yoke (Tension Sleeve)
Number of Contacts	10
UL Flammability Code	94V-0
Voltage	300V
Max Current Rating	10A
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	12-26 AWG
Voltage - IEC	400V
Torque - Screw	0.4-0.5 Nm (3.5-4.4 Lb-In)
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Current - IEC	17.5A
Screw Size	M2.5
Height	15.2mm
Length	52.8mm
Width	20mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1356860000 Product Details

1356860000 Overview

Free Hanging (In-Line) is the type of mounting for the device.In order to package the product, a Bulk case is used.Unimate BLA Series product.Mounting of the part is based on Cable, Free Hanging.It operates at an operating temperature of -50°C~120°C.Many Plug, Female Sockets products share the same benefits as this part.
