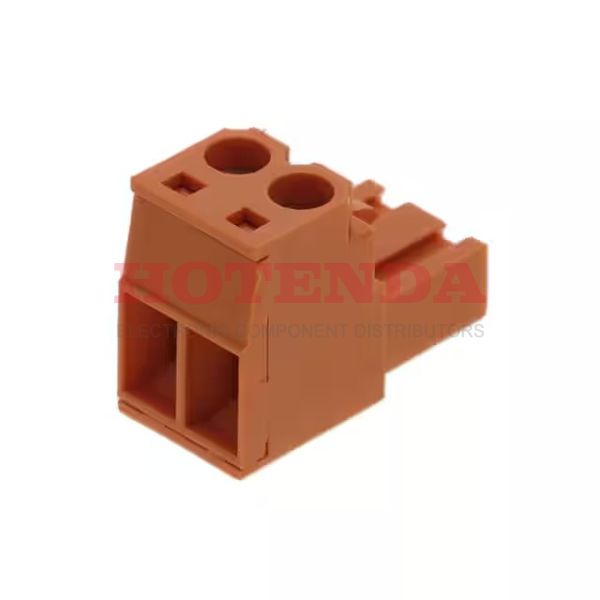

Name: 1526460000
Brand: Weidmüller
SKU: 1526460000
Availability: InStock

new-10%

1526460000

Manufacturer part number:1526460000

Manufacturer:Weidmüller

Description:1526460000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1526460000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2006
Series	Omnimate BL
JESD-609 Code	e3
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Screw
Connector Type	Terminal Block
Type	Plug, Female Sockets
Number of Positions	2
Color	Orange
Number of Rows	1
Voltage - Rated	400V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.200 5.08mm
Orientation	Right Angle
Ingress Protection	IP20
Depth	20.1mm
Insulation Height	0.598 15.19mm
Current Rating	19A
Termination Style	Screw - Clamping Yoke (Tension Sleeve)
Number of Contacts	2
UL Flammability Code	94V-0
Voltage	300V
Max Supply Voltage	300V
Max Current Rating	10A
Number of Levels	1
Current	15A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Wire/Cable Gauge	26 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	12-26 AWG
Torque - Screw	0.4-0.5 Nm (3.5-4.4 Lb-In)
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Current - IEC	19A
Screw Size	M2.5
Length	10.16mm
Width	20mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1526460000 Product Details

1526460000 Overview

You'll get Terminal Block packages.Free Hanging (In-Line) is the mount type.To package the product, a Bulk case is used.It belongs to the Omnimate BL Series of products.A number of advantages are provided by its Retention Latches (Non-Wire Side) feature.In this case, Cable, Free Hanging mounts the part.Device runs in -50°C~100°C operating temperature.This chip's supply voltage should not exceed 300V.There are a lot of similarities between this part and other Plug, Female Sockets products.
