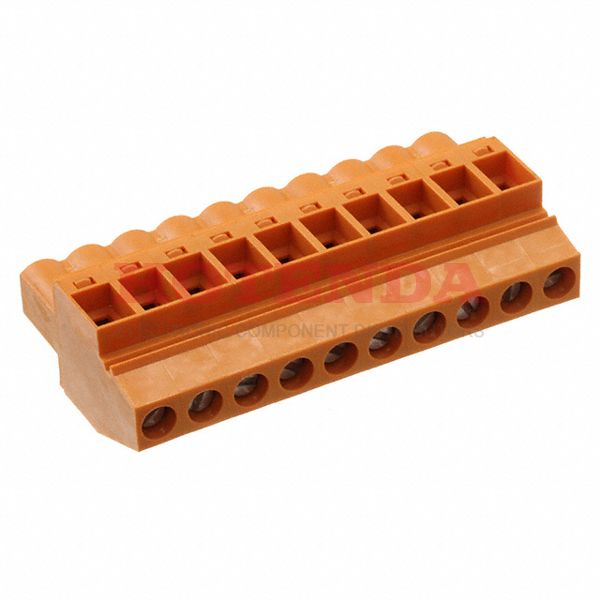

Name: 1558160000
Brand: Weidmüller
SKU: 1558160000
Price: 9.49000 USD
Availability: InStock

new

1558160000

Manufacturer part number:1558160000

Manufacturer:Weidmüller

Description:1558160000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1558160000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2008
Series	Omnimate BL
JESD-609 Code	e3
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Screw
Type	Plug, Female Sockets
Color	Orange
Number of Rows	1
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.200 5.08mm
Orientation	Straight
Insulation Height	1.059 26.90mm
Termination Style	Screw - Clamping Yoke (Tension Sleeve)
Number of Contacts	10
UL Flammability Code	94V-0
Voltage	300V
Max Current Rating	15A
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	12-26 AWG
Voltage - IEC	400V
Torque - Screw	0.4-0.5 Nm (3.5-4.4 Lb-In)
Plug Wire Entry	270°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Current - IEC	15A
Screw Size	M2.5
Height	26.9mm
Length	51.8mm
Width	14.3mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1558160000 Product Details

1558160000 Overview

Its mounting type is Free Hanging (In-Line).We pack the product in a Bulk case.The product is a part of the Omnimate BL Series.A number of advantages are provided by its Retention Latches (Non-Wire Side) feature.In this case, Cable, Free Hanging mounts the part.Running in -50°C~100°C Operating Temperature.Other Plug, Female Sockets products share lots of benefits with this part.
