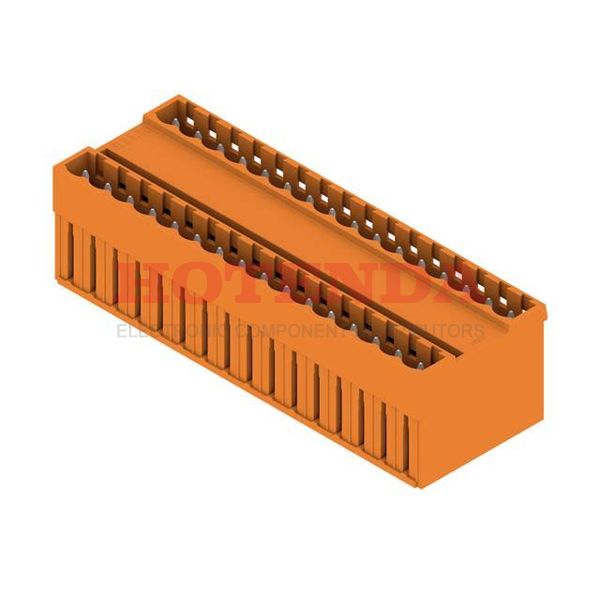

Name: 1614950000
Brand: Weidmüller
SKU: 1614950000
Price: 13.38000 USD
Availability: InStock

new

1614950000

Manufacturer part number:1614950000

Manufacturer:Weidmüller

Description:1614950000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1614950000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2008
Series	Omnimate SL
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Type	Header, Male Pins, Shrouded (4 Side)
Color	Orange
Number of Rows	2
Voltage - Rated	300V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.197 5.00mm
Total Number of Contacts	32
Insulation Height	0.866 22.00mm
Current Rating	11A
Termination Style	Solder
Approval Agency	CSA, UR
UL Flammability Code	94V-0
Insulation Resistance	1MOhm
Voltage	300V
Contact Tail Length	0.126 3.20mm
Number of Levels	2
Current	10A
Number of Poles	32
Contact Mating Finish	Tin
Voltage - IEC	400V
Positions Per Level	16
Header Orientation	Vertical
Current - IEC	11A
Hole Diameter	1.3 mm
Height	22mm
Length	82mm
Width	28.5mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1614950000 Product Details

1614950000 Overview

Through Hole indicates that the device is mounted.We package the product with a Bulk case.The product belongs to the Omnimate SL Series.There is a Through Hole mount on the part.-50°C~100°C Operating Temperature is the default.Compared to other Header, Male Pins, Shrouded (4 Side) products, this part has a lot of benefits to offer.
